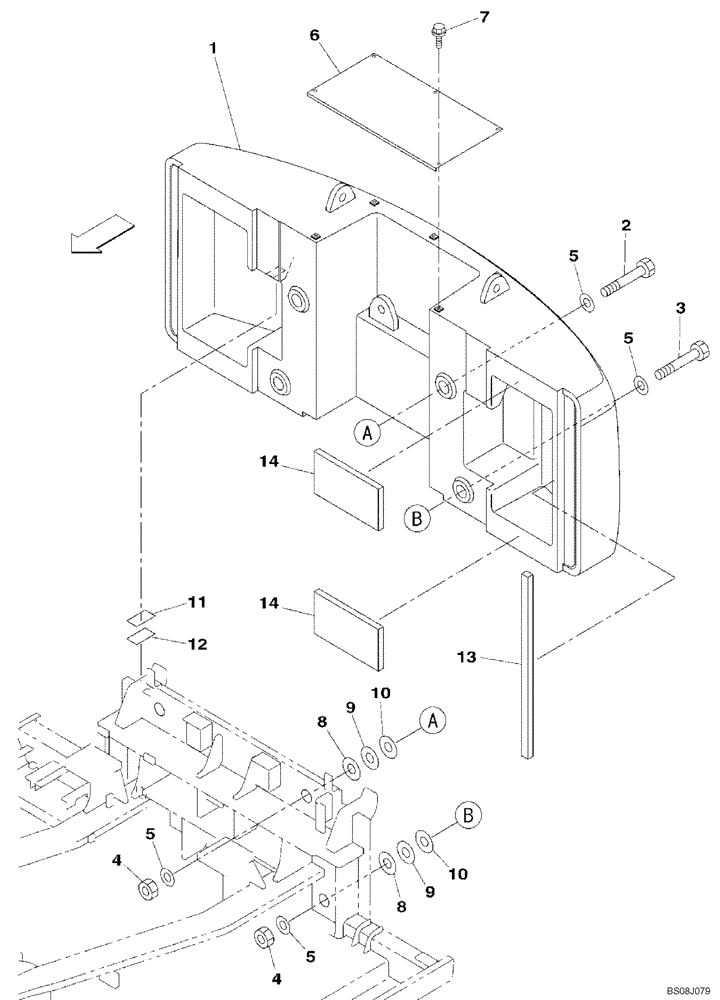

Запчасти Case CX800B (09-06) - COUNTERWEIGHT - SOUNDPROOFING (09) - CHASSIS

1

KUB0191

WEIGHT PACKAGE

1шт.

2

KUB10300

BOLT

M42 x 810

2шт.

3

163649A1

BOLT,High Strength, Hex, M42 x 700mm

M42 x 700

2шт.

4

KUB10970

NUT

M42 (Replaced 166UR042VN)

4шт.

5

KUB10960

WASHER

(Replaced 150400A1)

8шт.

6

KUB0133

COVER

1шт.

7

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

8

151020A1

ADJUSTING PLATE

T=2.0 mm

1шт.

9

151023A1

ADJUSTING PLATE

T=3.2 mm

2шт.

10

151028A1

ADJUSTING PLATE

T=4.5 mm

1шт.

11

KUB0110

SHIM,2.3mm Thk

1шт.

12

KUB0111

SHIM,3.2mm Thk

1шт.

13

KUB10950

SEAL

1шт.

14

KUB10940

SEAL

1шт.
