(05-12) - UNDERCARRIAGE- COVERS

Запчасти Case CX800B (05-12) - UNDERCARRIAGE- COVERS (11) - TRACKS/STEERING

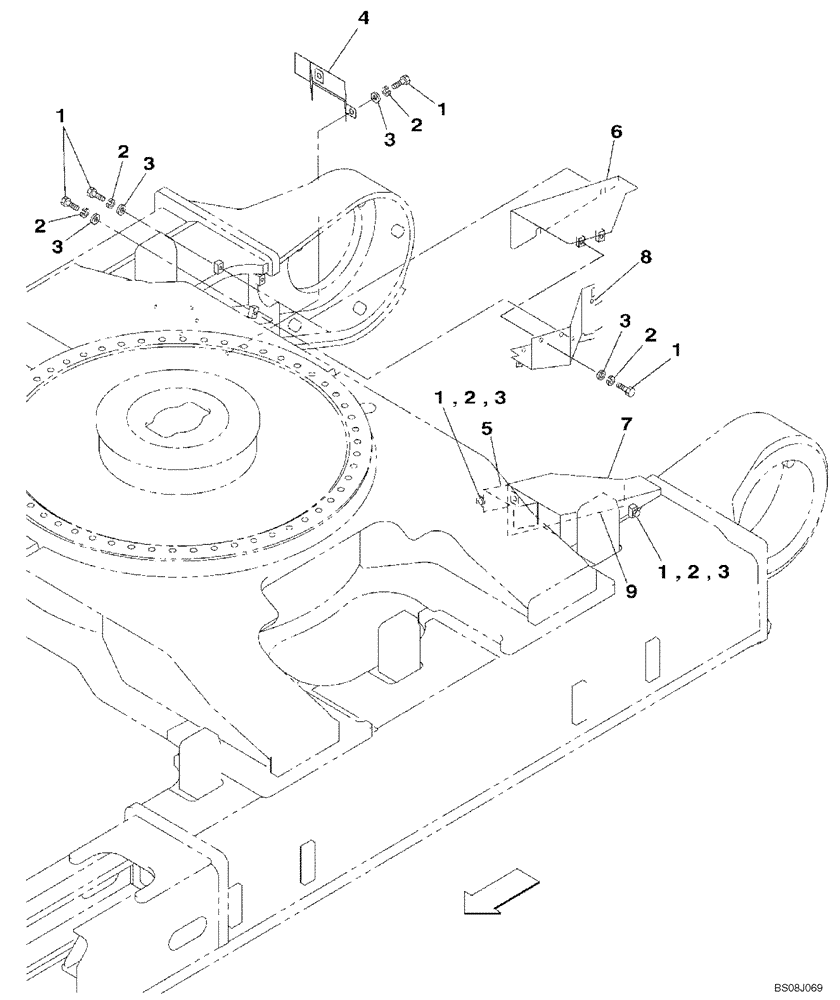

Схема запчастей Case CX800B - (05-12) - UNDERCARRIAGE- COVERS (11) - TRACKS/STEERING
2
2
8
1
1
3
3
6
2
3
4
7
1
5
3
1
3
1
2
2
9
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

627-16035

BOLT,Hex, M16 x 2 x 35mm, Cl 10.9, Full Thd

20шт.

2

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

20шт.

3

150814A1

WASHER,17mm ID x 32mm OD x 4.5mm Thk

W16

20шт.

4

KUA10740

COVER

1шт.

5

KUA10750

COVER

1шт.

6

KUA10900

COVER

1шт.

7

KUA10910

COVER

1шт.

8

KUA10920

COVER

1шт.

9

KUA10930

COVER

1шт.
