(35.353.AE) - TRACTION MOTOR LINE

Запчасти Case CX130C (35.353.AE) - TRACTION MOTOR LINE (35) - HYDRAULIC SYSTEMS

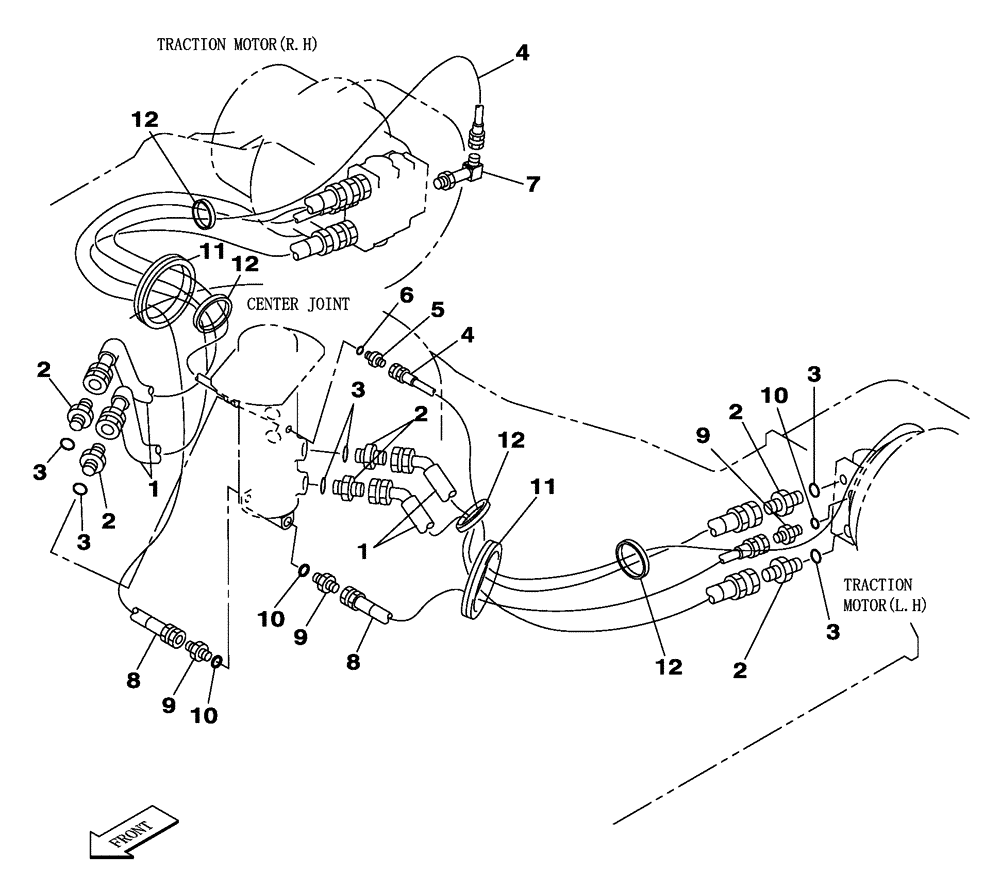

Схема запчастей Case CX130C - (35.353.AE) - TRACTION MOTOR LINE (35) - HYDRAULIC SYSTEMS
12
12
9
9
4
3
1
12
2
8
7
3
1
5
10
8
3
2
6
3
2
11
11
3
9
4
12
2
2
10
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160696A1

HYDRAULIC HOSE,19.00 mm ID x 1680.00 mm

4шт.

2

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl 3

8шт.

3

154503A1

O-RING

1шт.

4

152079A1

AIR INTAKE TUBE,152.40mm OD, 245, 120mm L

2шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 6

2шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

NBR70K6 10.80IDX240

1шт.

7

KHJ1178

ELBOW

2шт.

8

150963A1

HYDRAULIC HOSE,12.70 mm ID x 1650.00 mm

2шт.

9

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl 10

4шт.

10

154487A1

O-RING

1шт.

11

150953A1

RUBBER BLOCK

2шт.

12

150071A1

MOUNTING CLIP

380 mm

4шт.
