(35.106.22) - HYDRAULIC PUMP - OPTIONAL

Запчасти Case CX160C (35.106.22) - HYDRAULIC PUMP - OPTIONAL (35) - HYDRAULIC SYSTEMS

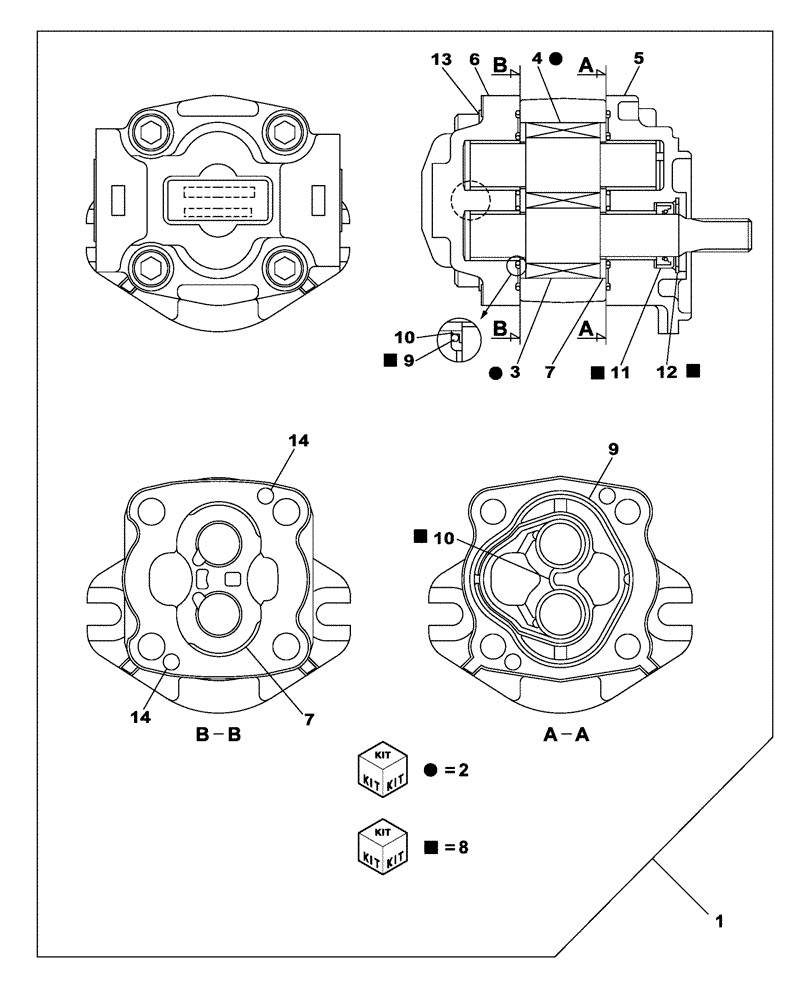

Схема запчастей Case CX160C - (35.106.22) - HYDRAULIC PUMP - OPTIONAL (35) - HYDRAULIC SYSTEMS
14
8
8
8
9
4
12
10
7
2
5
10
9
2
1
7
11
3
6
8
8
2
14
13
2
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KNJ10650

HYDRAULIC PUMP

Incl. 2 - 14

1шт.

1

KNJ10650R

REMAN-HYD PUMP

CX160C CRAWLER EXCAVATOR - TIER 4 (NA) (4/12-)

1шт.

1

KNJ10650C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

LC002960

GEAR SET

Incl. 3 - 4

1шт.

3

NSS

NOT SOLD SEPARAT

No Longer Included on BOM, Remove From Art

1шт.

4

NSS

NOT SOLD SEPARAT

No Longer Included on BOM, Remove From Art

1шт.

5

LH004940

FLANGE

1шт.

6

LW005070

COVER

1шт.

7

LR015150

PLATE

2шт.

8

LZ008000

REPAIR KIT

Incl. 9 - 12

1шт.

9

LAP0032

SEAL

2шт.

10

LBP0073

BACK-UP RING

2шт.

11

LAP0033

OIL SEAL

1шт.

12

LMP0257

RING

1шт.

13

LA011050

BOLT,Hex Skt Hd

4шт.

14

LA011060

SPECIAL PIN

4шт.
