(50.200.10[01]) - CAB AIR CONDITIONING - CAB

Запчасти Case CX160C (50.200.10[01]) - CAB AIR CONDITIONING - CAB (50) - CAB CLIMATE CONTROL

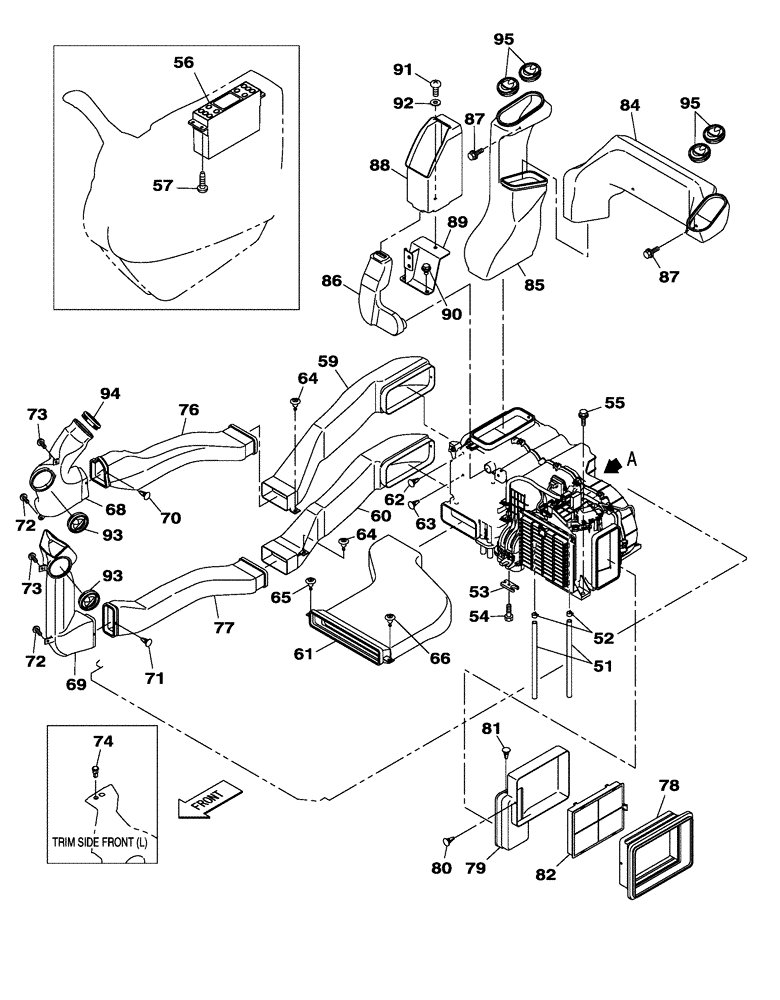

Схема запчастей Case CX160C - (50.200.10[01]) - CAB AIR CONDITIONING - CAB (50) - CAB CLIMATE CONTROL
76
80
53
66
94
60
69
63
52
64
56
51
71
93
90
73
59
81
72
54
55
91
64
73
57
78
87
68
85
84
95
61
82
93
87
86
79
70
88
89
77
62
74
92
95
65
72
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

51

KHR3574

HOSE

2шт.

52

159622A1

MOUNTING CLIP

2шт.

53

KHR10420

PLATE

1шт.

54

KHR2464

BOLT

M6 x 20

1шт.

55

KHJ2298

BOLT,Spcl

M10 x 25

6шт.

56

KHR27251

INSTRUMENT PANEL

1шт.

57

KHR2737

SELF-TAP SCREW

M5 x 14

4шт.

59

KHR27070

DUCT

1шт.

60

KHR27080

DUCT

1шт.

61

KHR27110

DUCT

1шт.

62

KHR27960

PIN

1шт.

63

KHR27960

PIN

1шт.

64

KHR13950

CLIP

2шт.

65

KHR13950

CLIP

1шт.

66

KHR13950

CLIP

1шт.

68

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

69

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

1шт.

70

KHR27960

PIN

1шт.

71

KHR27960

PIN

1шт.

72

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

73

NSS

NOT SOLD SEPARAT

No Longer Included In BOM, Remove From Art

2шт.

74

NSS

NOT SOLD SEPARAT

Duct, Incl. In KG0HR562

1шт.

76

KHR27050

DUCT

1шт.

77

KHR27060

DUCT

1шт.

78

KHR27120

DUCT

1шт.

79

KHR27130

DUCT

1шт.

80

KHR27960

PIN

1шт.

81

KHR27960

PIN

1шт.

82

KHR27260

CAB FILTER

1шт.

84

KHR27090

DUCT

Left

1шт.

85

KHR27100

DUCT

Right

1шт.

86

KHR27140

DUCT

1шт.

87

KHN2132

BOLT,Hex Flg Hd, M6 x 16

3шт.

88

KHR27270

BOX

1шт.

89

KHR24720

BRACKET, SUPPORTING

1шт.

90

166345A1

BOLT

M8 x 16

2шт.

91

158404A1

DRAIN PLUG

1шт.

92

KHN2312

WASHER

1шт.

93

KHR21450

DIFFUSER

2шт.

94

KHR21450

DIFFUSER

1шт.

95

KHR21450

DIFFUSER

4шт.
