(90.100.AD[04]) - HOUSING

Запчасти Case CX160C (90.100.AD[04]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS

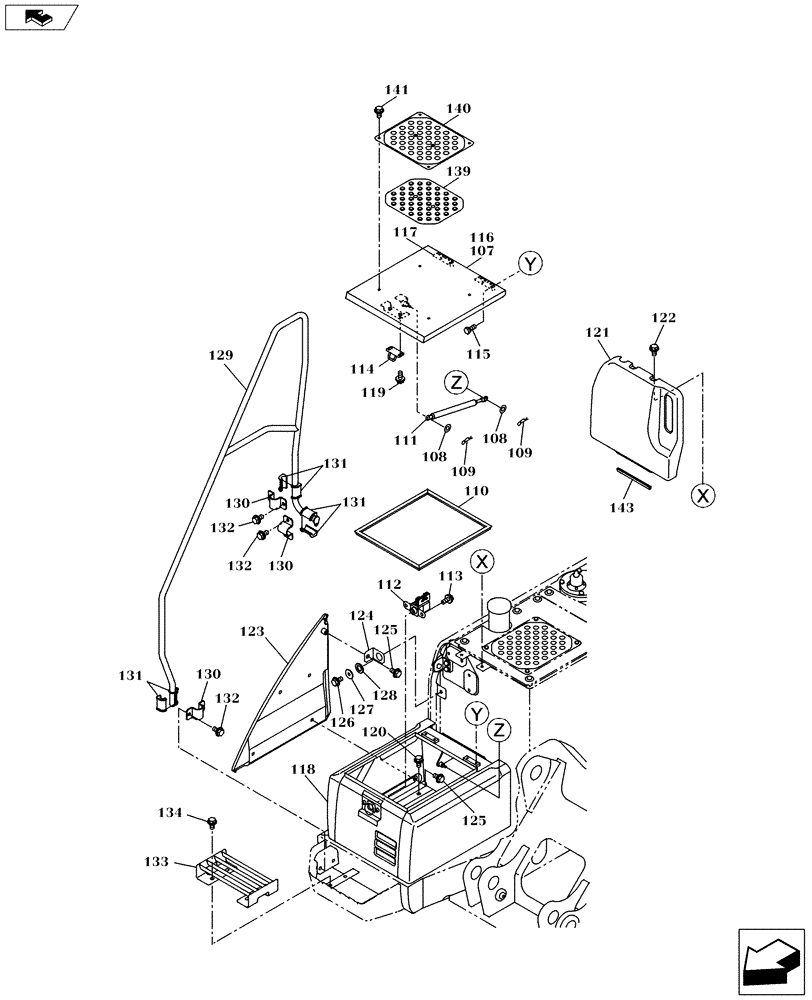

Схема запчастей Case CX160C - (90.100.AD[04]) - HOUSING (90) - PLATFORM, CAB, BODYWORK AND DECALS
133
139
125
home
1
1
1
131
1
10
141
16
111
19
132
124
129
18
140
108
1
119
128
132
127
130
108
12
14
1
114
125
11
126
123
131
113
131
1
107
117
1
115
134
07
120
15
121
143
116
109
13
130
1
132
109
130
110
122
1
17
118
1
112
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

House, Incl in KG0LN034

1шт.

34

NSS

NOT SOLD SEPARAT

Incl in KG0LN034

1шт.

107

KNN10360DM

COVER

1шт.

108

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.

109

153077A1

COTTER PIN

2шт.

110

KNN11100

SEALING STRIP

1шт.

111

KHN24400

GAS STRUT

1шт.

112

KHN12730

LOCK

1шт.

113

166351A1

BOLT,Sems, M10 x 20mm

2шт.

114

KHN12740

SUPPORT

1шт.

115

KAN2771

BOLT,Spcl

4шт.

116

KNN10380G1

COVER

1шт.

117

KHN17220

HINGE

2шт.

118

KNN10370G1

COVER

1шт.

119

166350A1

BOLT

2шт.

120

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

121

KNN10390G1

COVER

1шт.

122

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

2шт.

123

KHN12710Y2

COVER

1шт.

124

KHN12720

SUPPORT

1шт.

125

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

5шт.

126

166352A1

BOLT

1шт.

127

162409A1

WASHER

1шт.

128

KHN2061

WASHER

1шт.

129

KHN12681B1

STAY

1шт.

130

KHN12690

COLLAR

3шт.

131

KHN12700

COLLAR

6шт.

132

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

6шт.

133

KNN13190B1

STEP

, Serial Range: -NCSAF1104

1шт.

134

152718A1

BOLT,Spcl, Hex Wshr, M12 x 25mm, Cl 10.9

, Serial Range: -NCSAF1104

4шт.

139

KHN10940

RUBBER PAD

2шт.

140

KHN13510B1

COVER

2шт.

141

KHN13540

BOLT,Spcl

8шт.

143

KHR14920

SEAL PROTECTION

1шт.
