(90.150.BJ[01]) - CAB FRONT GUARD - MESH, LOWER WINDSHIELD

Запчасти Case CX160C (90.150.BJ[01]) - CAB FRONT GUARD - MESH, LOWER WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS

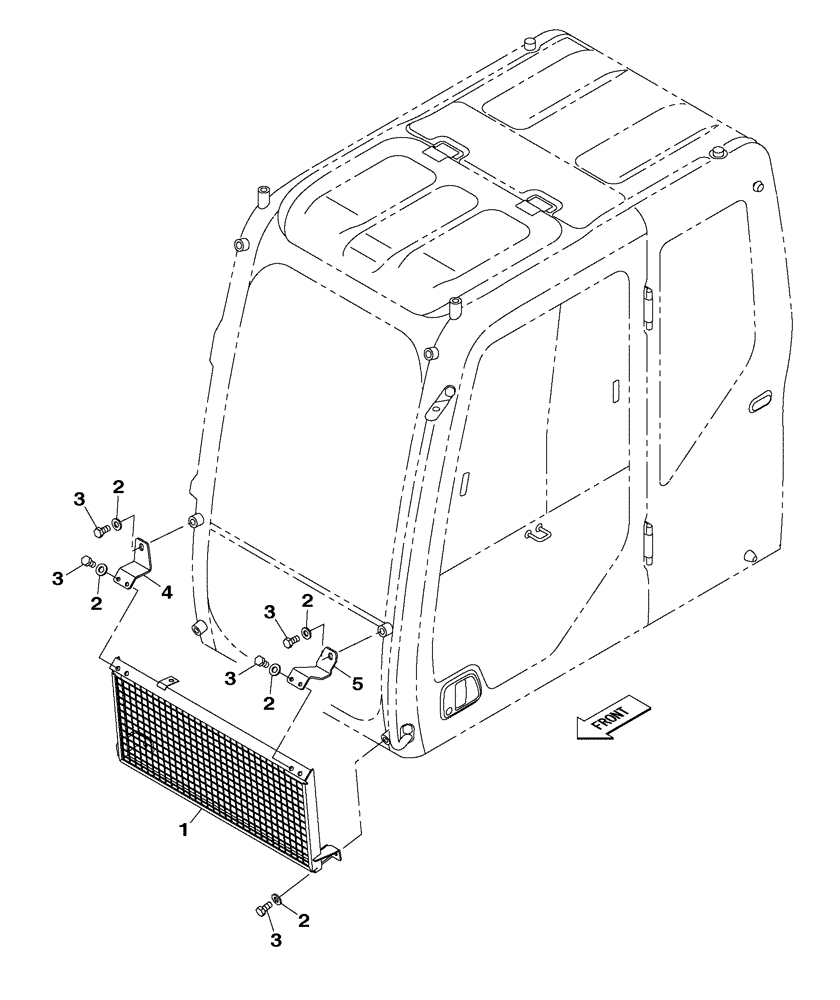

Схема запчастей Case CX160C - (90.150.BJ[01]) - CAB FRONT GUARD - MESH, LOWER WINDSHIELD (90) - PLATFORM, CAB, BODYWORK AND DECALS
2
3
5
3
4
2
2
3
3
1
2
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHN27890

GUARD

1шт.

2

150811A1

WASHER

8шт.

3

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

8шт.

4

KHN27920

BRACKET

1шт.

5

KHN27930

BRACKET

1шт.
