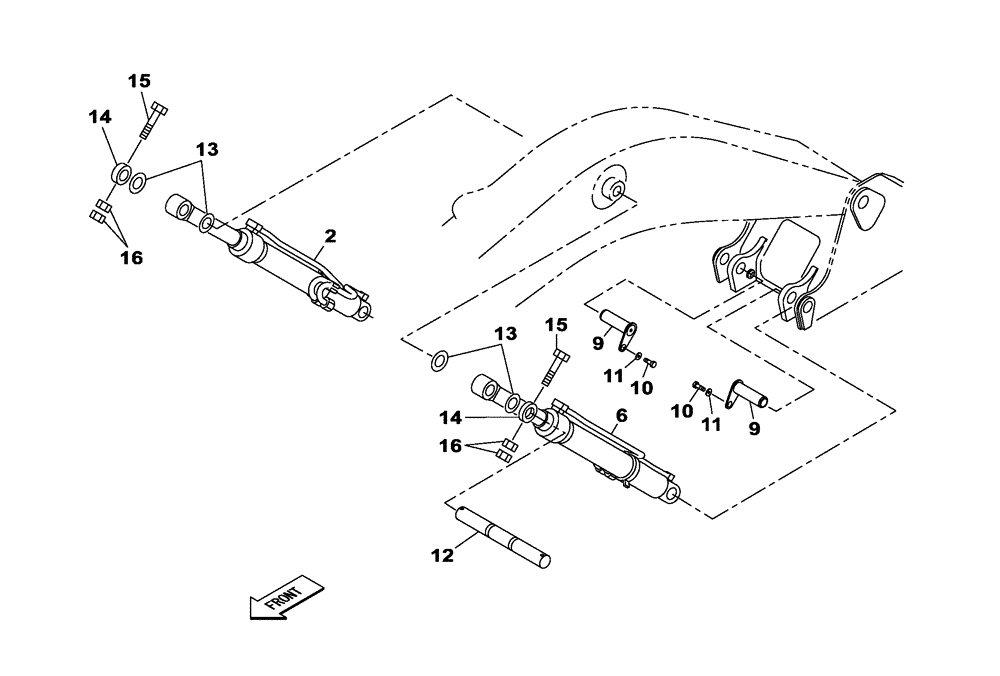

Запчасти Case CX210C LC (35.736.02) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITHOUT SAFETY VALVE (35) - HYDRAULIC SYSTEMS

2

KRV32981

CYLINDER

1шт.

2

KRV32981R

REMAN-HYD CYLINDER

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA), WITHOUT SAFETY VALVE (2/12-)

1шт.

2

KRV32981C

CORE-HYD CYLINDER

Return Number

1шт.

6

KRV32991

CYLINDER

1шт.

6

KRV32991R

REMAN-HYD CYLINDER

CX210C LC CRAWLER EXCAVATOR - TIER 4 (NA), WITHOUT SAFETY VALVE (2/12-)

1шт.

6

KRV32991C

CORE-HYD CYLINDER

Return Number

1шт.

9

KRV10960

PIN

2шт.

10

627-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 10.9, Full Thd

2шт.

11

157141A1

WASHER

2шт.

12

169087A1

PIN

1шт.

13

160453A1

SHIM

4шт.

14

160451A1

LOCKING RING

2шт.

15

514-1222

BOLT,Hex, M20 x 1.5 x 170mm, Cl 10.9

2шт.

16

829-11420

NUT,M20 x 1.5, Cl 10

4шт.
