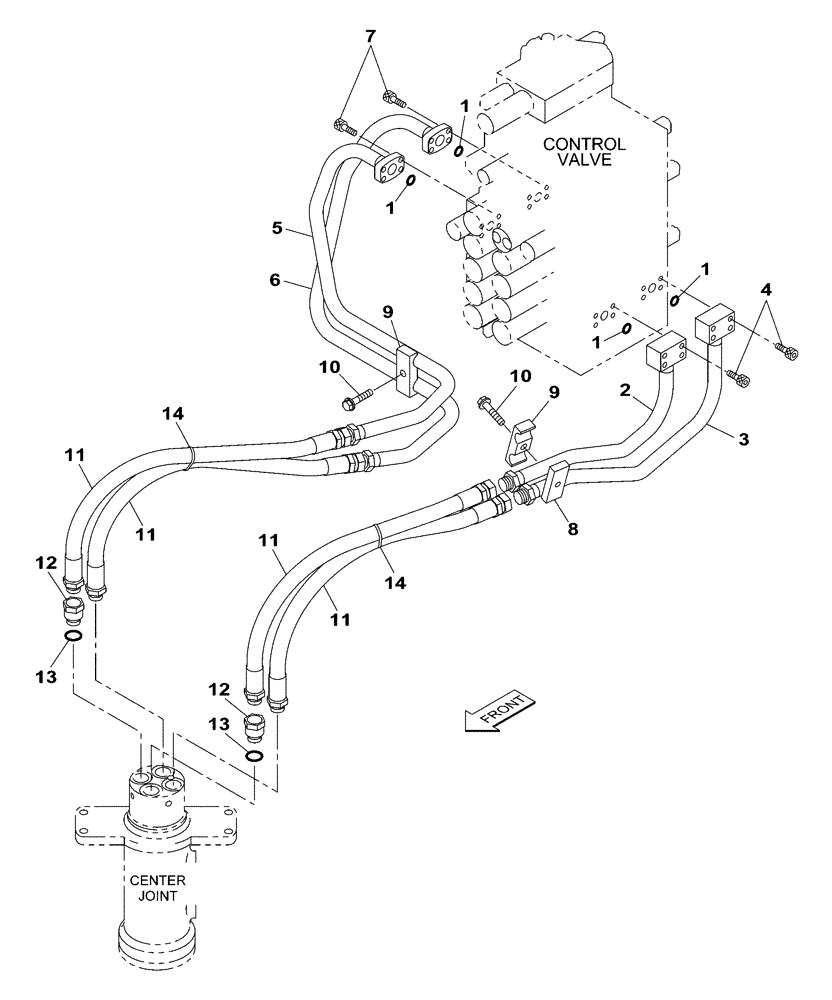

Запчасти Case CX210C LR (35.353.02) - HYDRAULIC CIRCUIT - TRAVEL (35) - HYDRAULIC SYSTEMS

1

155210A1

O-RING

4шт.

2

KRJ10611

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

3

KRJ10621

HYD TUBE,20.8 mm ID x 27.2 mm OD

1шт.

4

862-10055

HEX SOC SCREW,M10 x 55mm, Cl 12.9

8шт.

5

KRJ10632

HYD TUBE

1шт.

6

KRJ10642

HYD TUBE

1шт.

7

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

8шт.

8

KRJ10720

PLATE

1шт.

9

152085A1

COLLAR

2шт.

10

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

M 12 x 60

2шт.

11

KRJ10710

HYDRAULIC HOSE,19.00 mm ID x 780.00 mm

4шт.

12

KHJ11060

STUD

Incl 13

2шт.

13

154503A1

O-RING

1шт.

14

150498A1

MOUNTING CLIP

300 mm

2шт.
