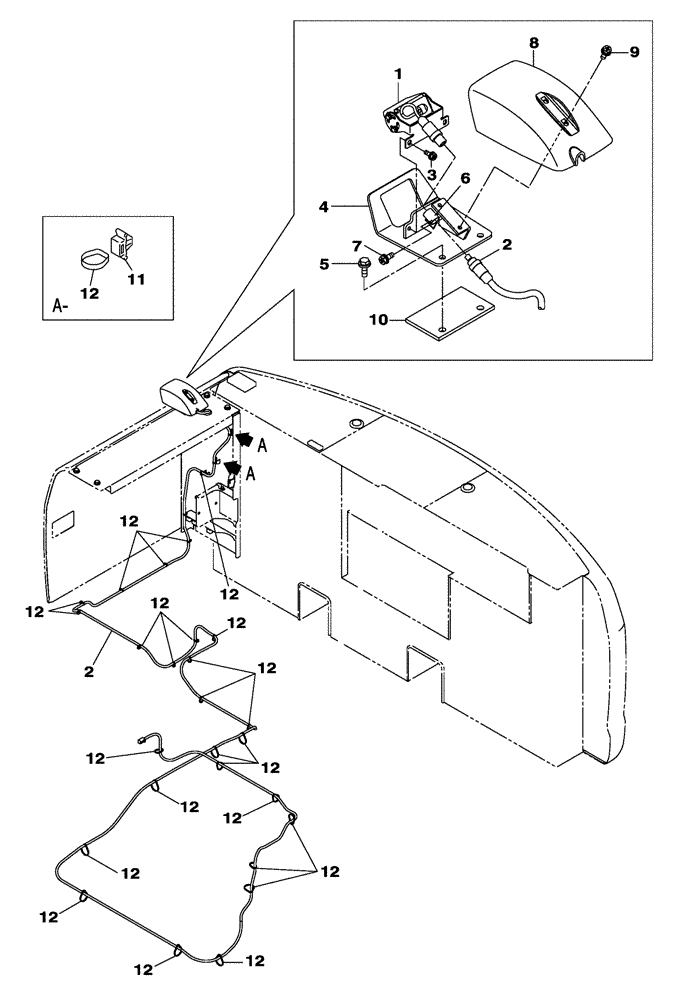

Запчасти Case CX210C NLC (88.100.08) - DIA KIT - ELECTRICAL CIRCUIT (88) - ACCESSORIES

0

KG0RR728-00

CONSTRUCTION DIA

DIA KIT, Electrical Circuit

1шт.

1

KHR23830

VIDEO CAMERA

1шт.

2

KHR28650

WIRE HARNESS

1шт.

3

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

4

KHR28630B1

BRACKET, SUPPORTING

1шт.

5

167182A1

BOLT,Sems, M8 x 25mm

M8 x 25

2шт.

6

157806A1

COLLAR

1шт.

7

KHN2132

BOLT,Hex Flg Hd, M6 x 16

1шт.

8

KHR28640

COVER

1шт.

9

KHN2132

BOLT,Hex Flg Hd, M6 x 16

2шт.

10

KHR28660

PLATE

1шт.

11

KHR10220

MOUNTING CLIP

2шт.

12

150496A1

MOUNTING CLIP

250 mm

16шт.
