(90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE

Запчасти Case CX210C NLC (90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS

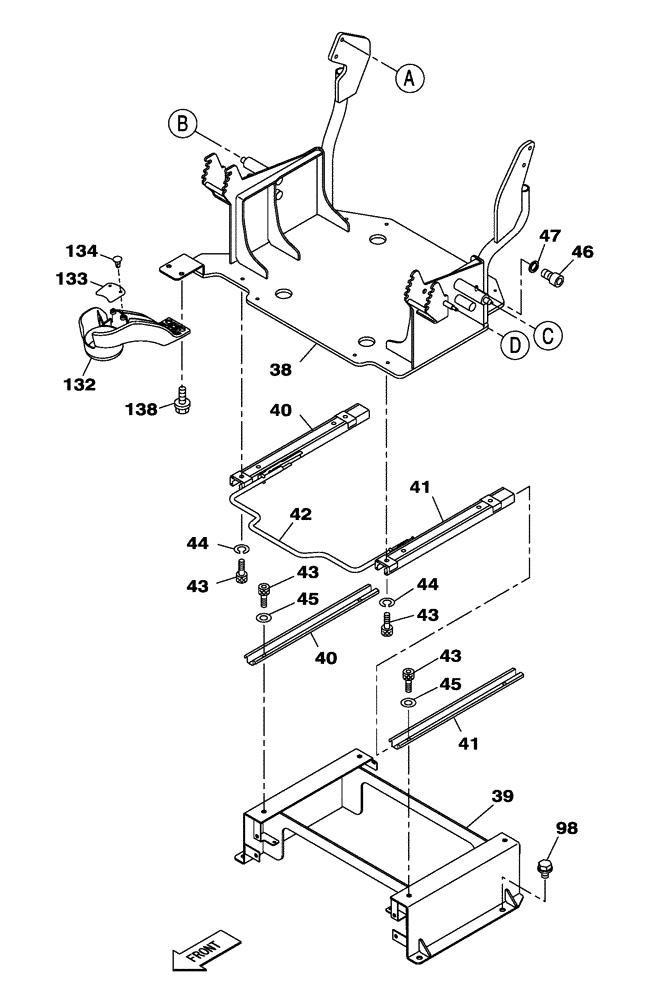

Схема запчастей Case CX210C NLC - (90.110.01[03]) - OPERATORS COMPARTMENT - BOX - GUIDE, SLIDE (90) - PLATFORM, CAB, BODYWORK AND DECALS
132
43
38
133
41
98
138
47
40
46
42
43
44
43
46
46
134
43
41
44
39
40
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

38

KHN24071

BASE PLATE

1шт.

39

KHN24082

SLIDE

1шт.

40

KHN13421

SLIDE GUIDE

1шт.

41

KHN13431

SLIDE GUIDE

1шт.

42

KHN24050

LEVER

1шт.

43

108R008Y016R

BOLT

8шт.

44

183-108VR

SPRING WASHER

4шт.

45

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

4шт.

46

862-12020

HEX SOC SCREW,M12 x 20mm, Cl 12.9

1шт.

47

892-11012

LOCK WASHER,M12

1шт.

98

166346A1

BOLT,Sems, M10

4шт.

132

KHN23220

HOLDER

1шт.

133

KHN14760

PLATE

1шт.

134

KHN2470

CLIP

2шт.

138

KHN13540

BOLT,Spcl

2шт.
