Запчасти Case CX235C SR (35.357.02[04]) - CONTROL LINE - PILOT (35) - HYDRAULIC SYSTEMS

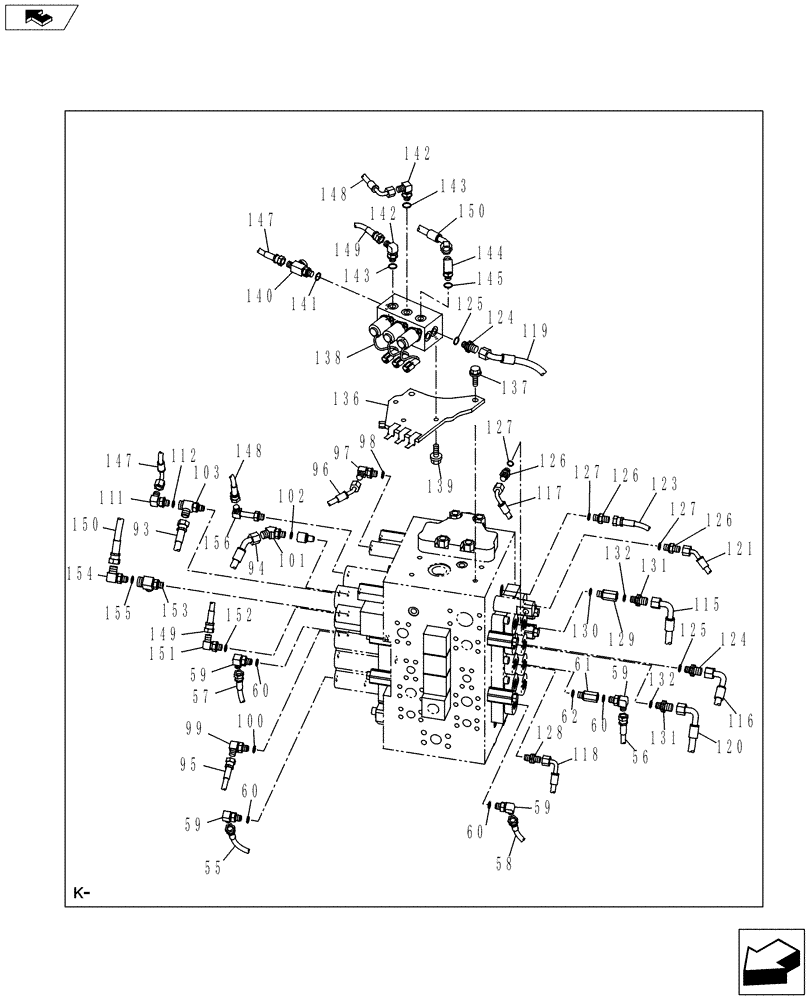

![Схема запчастей Case CX235C SR - (35.357.02[04]) - CONTROL LINE - PILOT (35) - HYDRAULIC SYSTEMS](https://www.partsell.ru/storage/images/casece/1190942.png)
№
Артикул
Название
Примечание
Количество
55
KHJ2198
HOSE,6.3mm ID x 2850mm L
Nylon
1шт.
56
KHJ2599
HOSE
Nylon
1шт.
57
KHJ2198
HOSE,6.3mm ID x 2850mm L
Nylon
1шт.
58
KHJ2599
HOSE
Nylon
1шт.
59
KHJ0917
ADAPTER
Hose
4шт.
60
154467A1
O-RING,10.8mm ID x 2.4mm Width
4шт.
61
162525A1
STUD
1шт.
62
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
93
KHJ23550
HOSE
Nylon
1шт.
94
KHJ26580
HOSE
Nylon
1шт.
95
KHJ2046
HOSE
Nylon
1шт.
96
KHJ12100
HYDRAULIC HOSE
Nylon
1шт.
97
KHJ0341
ELBOW
1шт.
98
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
100
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
101
161087A1
ELBOW
1шт.
102
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
103
KHJ25080
TEE
1шт.
111
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 112
1шт.
112
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
115
KHJ2037
HOSE
1шт.
116
KHJ14120
HYDRAULIC HOSE,9.52 mm ID x 950.00 mm
Nylon
1шт.
117
KHJ2091
HOSE
Nylon
1шт.
118
KHJ2249
HOSE
Nylon
1шт.
119
KHJ26380
HOSE
Nylon
1шт.
120
KHJ14120
HYDRAULIC HOSE,9.52 mm ID x 950.00 mm
Nylon
1шт.
121
KHJ24910
HOSE ASSY.
Nylon
1шт.
123
KHJ2096
FLEXIBLE HOSE
Nylon
1шт.
124
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Hose, Incl 125
2шт.
125
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
126
152127A1
HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT
Adapter, Hose, Incl 127
3шт.
127
154467A1
O-RING,10.8mm ID x 2.4mm Width
3шт.
128
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
1шт.
129
162525A1
STUD
Incl 130
1шт.
130
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
131
161842A1
ADAPTER,3/8" - 19 NPT x 1/4" - 19 ORB
Adapter, Hose, Incl 132
2шт.
132
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
136
KRJ31440
BRACKET
1шт.
137
166052A1
BOLT
SEMS
2шт.
138
KHJ23870
VALVE
1шт.
139
166350A1
BOLT
Bolt, SEMS
3шт.
140
167666A1
FITTING
Incl 141
1шт.
141
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
142
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 143
2шт.
143
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
144
153559A1
ELBOW
Incl 145
1шт.
145
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
147
KHJ2084
HOSE
Nylon
1шт.
148
KHJ2343
HOSE
Nylon
1шт.
149
KHJ2142
HOSE
Nylon
1шт.
150
KHJ26370
HOSE
Nylon
1шт.
151
150913A1
ELBOW,90 Degree, 1/4" O-Ring x 1/4"
90 deg, Incl 152
2шт.
152
154467A1
O-RING,10.8mm ID x 2.4mm Width
2шт.
153
KHJ12530
TEE
1шт.
154
KHJ0918
ADAPTER
Incl 155
1шт.
155
154467A1
O-RING,10.8mm ID x 2.4mm Width
1шт.
156
KHJ1178
ELBOW
1шт.
Выбрано товаров: 57
