(55.100.01[03]) - ELECTRIC SYSTEM - WIRE HARNESS

Запчасти Case CX235C SR (55.100.01[03]) - ELECTRIC SYSTEM - WIRE HARNESS (55) - ELECTRICAL SYSTEMS

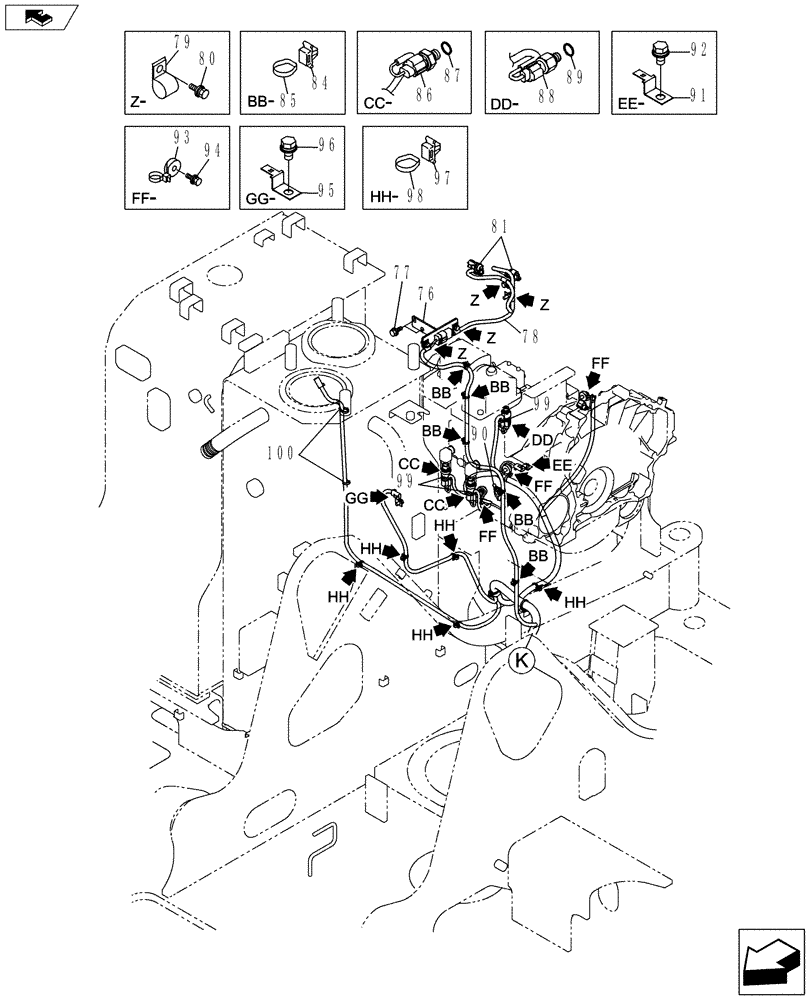

Схема запчастей Case CX235C SR - (55.100.01[03]) - ELECTRIC SYSTEM - WIRE HARNESS (55) - ELECTRICAL SYSTEMS
87
91
77
95
79
97
76
88
89
99
90
98
84
93
96
99
78
94
85
86
81
100
92
80
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

76

KHR32140

BRACKET

1шт.

77

167182A1

BOLT,Sems, M8 x 25mm

Bolt, SEMS

2шт.

78

KHR32130

WIRE HARNESS

1шт.

79

162146A1

CLAMP

Spl

4шт.

80

167320A1

BOLT,Spcl, M8 x 20mm

Bolt M8X20 (With Washer)

4шт.

81

150496A1

MOUNTING CLIP

Band, Harness

2шт.

84

KHR10220

MOUNTING CLIP

13шт.

85

150496A1

MOUNTING CLIP

Band, Harness

13шт.

86

KHR10290

SENSOR

Pressure

2шт.

87

154483A1

O-RING

2шт.

88

KHR26940

SENSOR

5MPA, Pressure

1шт.

89

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

90

KHR2433

SENSOR

Hydraulic Oil Temperature

1шт.

91

165405A1

CLIP

1шт.

92

156559A1

BOLT,High Strength, Hex, M6 x 12mm, W/ LW

1шт.

93

KHR2584

CLAMP

3шт.

94

KHJ1215

BOLT,Spcl

3шт.

95

158962A1

CLIP

1шт.

96

167518A1

BOLT

Bolt M8X16(With Washer)

1шт.

97

KHR10220

MOUNTING CLIP

7шт.

98

150496A1

MOUNTING CLIP

Band, Harness

7шт.

99

150496A1

MOUNTING CLIP

Band, Harness

3шт.

100

150496A1

MOUNTING CLIP

Band, Harness

2шт.
