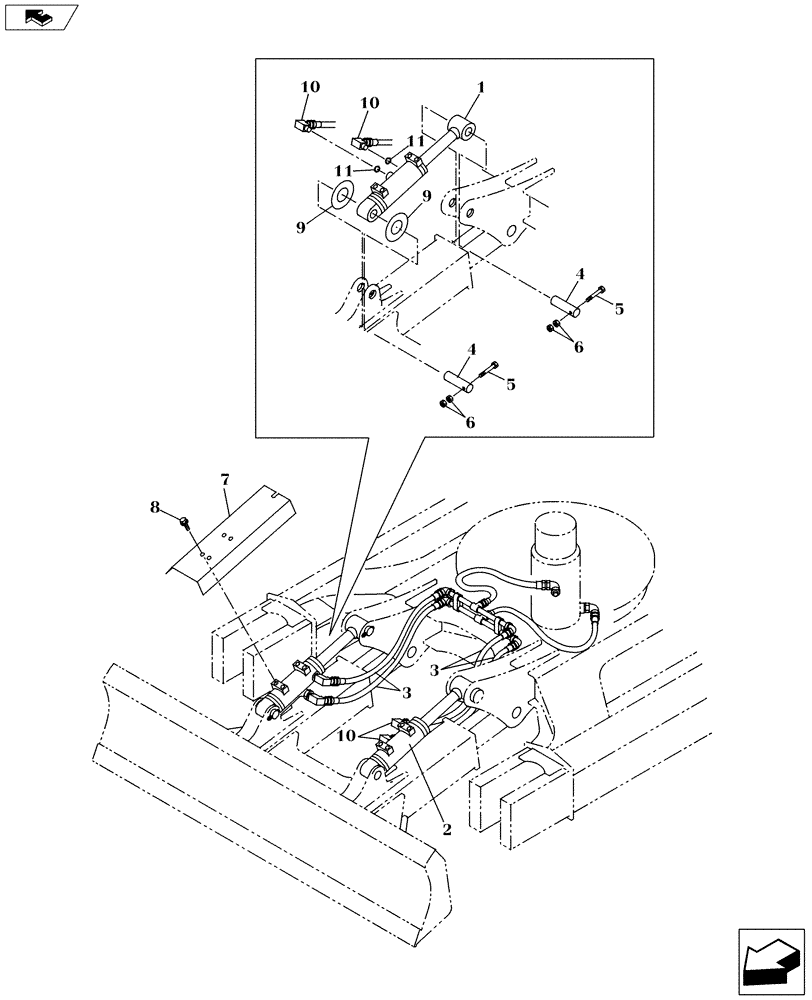

Запчасти Case CX235C SR (86.110.02[01]) - BLADE CYLINDER (86) - DOZER

1

KRV3282

HYDRAULIC CYLINDER

1шт.

1

KRV3282R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR TIER 4 (NA) (3/12-)

1шт.

1

KRV3282C

CORE-HYD CYLINDER

Return Number

1шт.

2

KRV3283

HYDRAULIC CYLINDER

1шт.

2

KRV3283R

REMAN-HYD CYLINDER

CX235C SR CRAWLER EXCAVATOR TIER 4 (NA) (3/12-)

1шт.

2

KRV3283C

CORE-HYD CYLINDER

Return Number

1шт.

3

KRV3316

HYDRAULIC HOSE

4шт.

4

KRV3315

PIN

4шт.

5

514-1112

BOLT,Hex, M16 x 1.5 x 140mm, Cl 10.9

BOLT, HIGH STRENGTH

4шт.

6

829-13416

NUT,M16 x 1.5, Cl 10

NUT, HIGH STRENGTH

8шт.

7

KRV3317

COVER

2шт.

8

167893A1

BOLT

BOLT(WITH WASHER)

8шт.

9

KNV0536

SHIM

1шт.

10

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ADAPTER, HOSE

4шт.

11

150539A1

O-RING

ADAPTER, HOSE

4шт.
