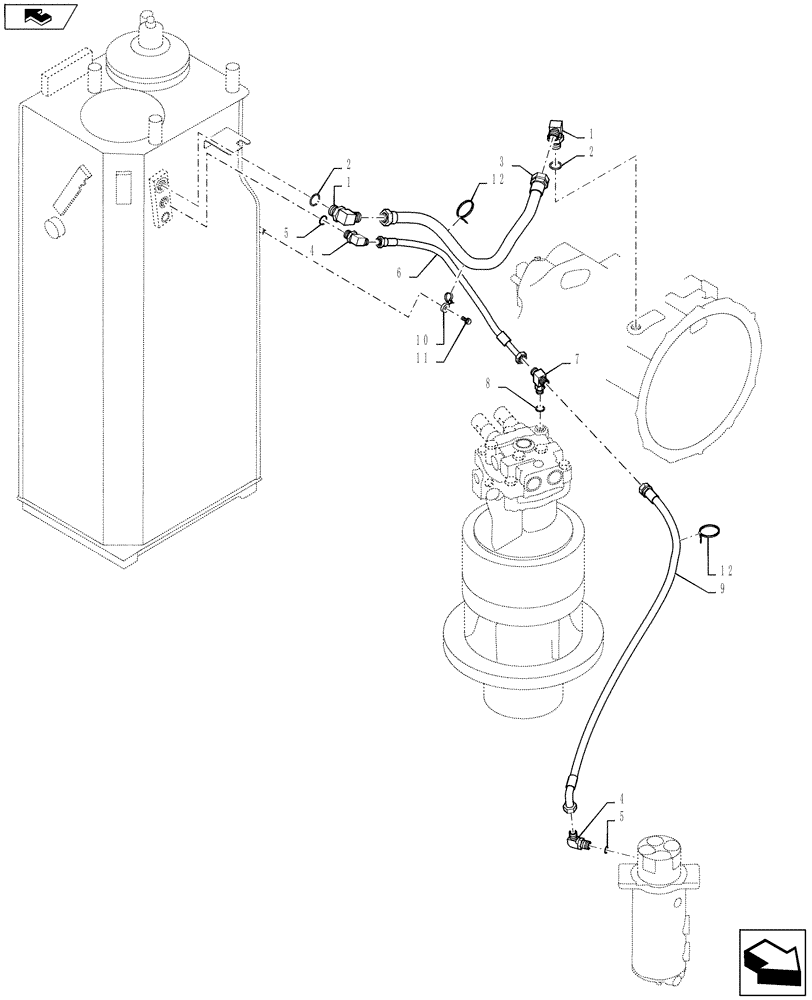

Запчасти Case CX235C SR (35.310.03) - HYD. LINE - DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

157580A1

ELBOW,90 Degree, 3/4" O-Ring x 3/4"

2шт.

2

154503A1

O-RING

2шт.

3

AFV14440

HYDRAULIC HOSE

1шт.

4

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

2шт.

5

154487A1

O-RING

2шт.

6

KNJ2343

HYDRAULIC HOSE,12.70 mm ID x 620.00 mm

1шт.

7

KHJ1157

TEE

1шт.

8

154475A1

O-RING

1шт.

9

KTJ2123

HYDRAULIC HOSE

2шт.

10

KHR2584

CLAMP

1шт.

11

KHJ1215

BOLT,Spcl

1шт.

12

150496A1

MOUNTING CLIP

2шт.
