(35.310.07) - HYD. LINE - UNDERCARRIAGE

Запчасти Case CX235C SR (35.310.07) - HYD. LINE - UNDERCARRIAGE (35) - HYDRAULIC SYSTEMS

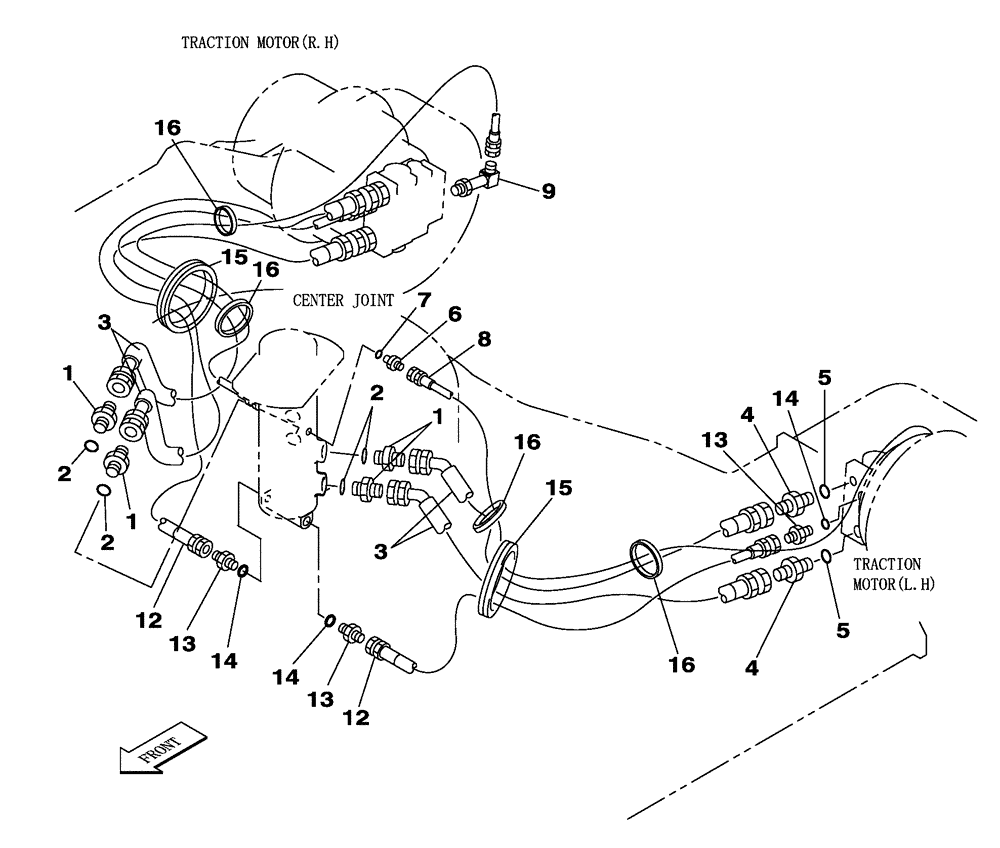

Схема запчастей Case CX235C SR - (35.310.07) - HYD. LINE - UNDERCARRIAGE (35) - HYDRAULIC SYSTEMS
2
16
13
6
16
1
3
9
16
15
13
2
16
7
13
14
5
15
4
8
3
2
1
5
12
12
14
4
14
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

Incl 2

4шт.

2

154503A1

O-RING

4шт.

3

KRA1536

HYDRAULIC HOSE,19mm ID x 2120mm L

4шт.

4

169040A1

ADAPTER

Incl 5

4шт.

5

154523A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Incl 7

2шт.

7

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

152778A1

HOSE ASSY.

2800 mm

2шт.

9

KHJ1178

ELBOW

2шт.

12

152435A1

HYDRAULIC HOSE,12.70 mm ID x 2150.00 mm

2шт.

13

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

Incl 14

4шт.

14

154487A1

O-RING

4шт.

15

160414A1

RUBBER BLOCK

430 mm

2шт.

16

150071A1

MOUNTING CLIP

380 mm

4шт.
