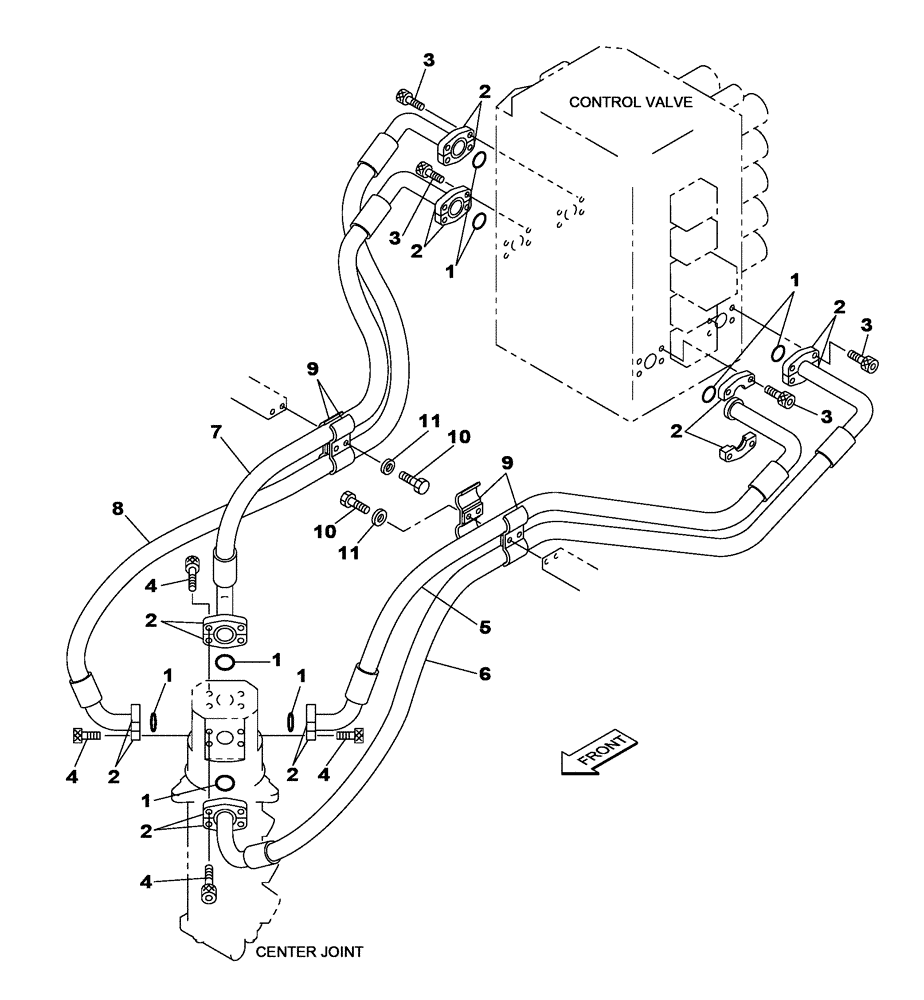

Запчасти Case CX470C (08-010-00[01]) - HYDRAULIC CIRCUIT - TRACTION LINE (07) - HYDRAULIC SYSTEM

1

155211A1

O-RING

8шт.

2

153459A1

FLANGE

16шт.

3

862-10035

HEX SOC SCREW,M10 x 35mm, Cl 12.9

16шт.

4

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

16шт.

5

KTJ2207

HYDRAULIC HOSE,25.40 mm ID x 1200.00 mm

1шт.

6

KTJ2208

HYDRAULIC HOSE,25.40 mm ID x 1480.00 mm

1шт.

7

KTJ2209

HYDRAULIC HOSE,25.40 mm ID x 1350.00 mm

1шт.

8

KTJ2210

HYDRAULIC HOSE,25.40 mm ID x 1550.00 mm

1шт.

9

KSJ2724

CLAMP

4шт.

10

627-8030

BOLT,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

4шт.

11

153081A1

WASHER

4шт.
