(08-014-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE - MONOBLOCK BOOM

Запчасти Case CX470C (08-014-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE - MONOBLOCK BOOM (07) - HYDRAULIC SYSTEM

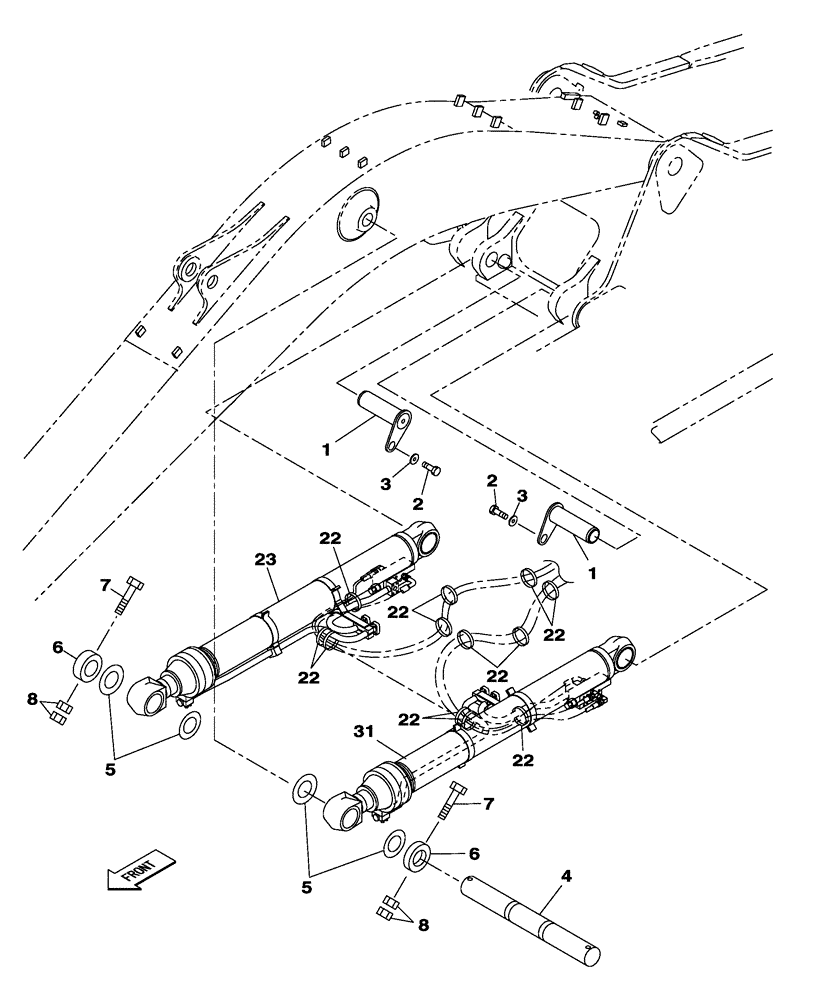

Схема запчастей Case CX470C - (08-014-00[01]) - HYDRAULIC CIRCUIT - BOOM CYLINDER - WITH SAFETY VALVE - MONOBLOCK BOOM (07) - HYDRAULIC SYSTEM
5
22
2
8
31
2
6
6
1
4
1
3
7
22
22
22
8
23
5
7
22
22
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KTV1272

PIN

2шт.

2

102R020Y035R

BOLT

M12 x 35

2шт.

3

KTV1185

SPACER

2шт.

4

KTV1232

PIN

1шт.

5

167529A1

ADJUSTING PLATE

4шт.

6

153808A1

RING, LOCKING

RING, LOCK

2шт.

7

827-24200

BOLT,Hex, M24 x 3 x 200mm, Cl 10.9

2шт.

8

829-13424

NUT,M24 x 2, Cl 10

4шт.

22

150071A1

MOUNTING CLIP

380 mm

12шт.

23

KTV11431

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-015-00 01

1шт.

23

KTV11431R

REMAN-HYD CYLINDER

CX470C CRAWLER EXCAVATOR, TIER 4 (NA), BOOM CYLINDER, WITH SAFETY VALVE, MONOBLOCK BOOM (9/11-)

1шт.

23

KTV11431C

CORE-HYD CYLINDER

Return Number

1шт.

31

KTV11441

HYDRAULIC CYLINDER

1шт.

See Figure(s) 08-015-00 01

1шт.

31

KTV11441R

REMAN-HYD CYLINDER

CX470C CRAWLER EXCAVATOR, TIER 4 (NA), BOOM CYLINDER, WITH SAFETY VALVE, MONOBLOCK BOOM (9/11-)

1шт.

31

KTV11441C

CORE-HYD CYLINDER

Return Number

1шт.
