(35.353.AE[03]) - TRAVEL MOTOR HOSES

Запчасти Case CX75C SR (35.353.AE[03]) - TRAVEL MOTOR HOSES (35) - HYDRAULIC SYSTEMS

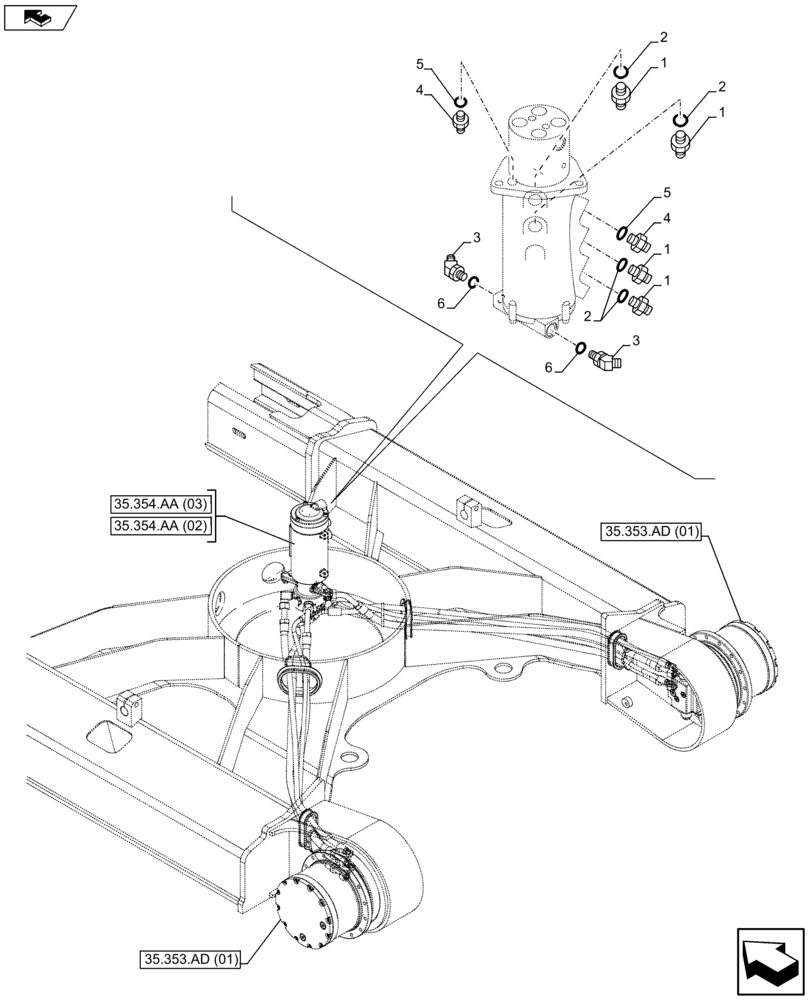

Схема запчастей Case CX75C SR - (35.353.AE[03]) - TRAVEL MOTOR HOSES (35) - HYDRAULIC SYSTEMS
2
1
4
3
6
35.354.aa (03)
4
3
6
1
1
2
2
5
35.353.ad (01)
35.353.ad (01)
35.354.aa (02)
1
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

4шт.

2

154487A1

O-RING

4шт.

3

157584A1

ELBOW

2шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

2шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

6

154475A1

O-RING

2шт.
