(35.357.AK[03]) - VAR - 461868 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK

Запчасти Case CX75C SR (35.357.AK[03]) - VAR - 461868 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS

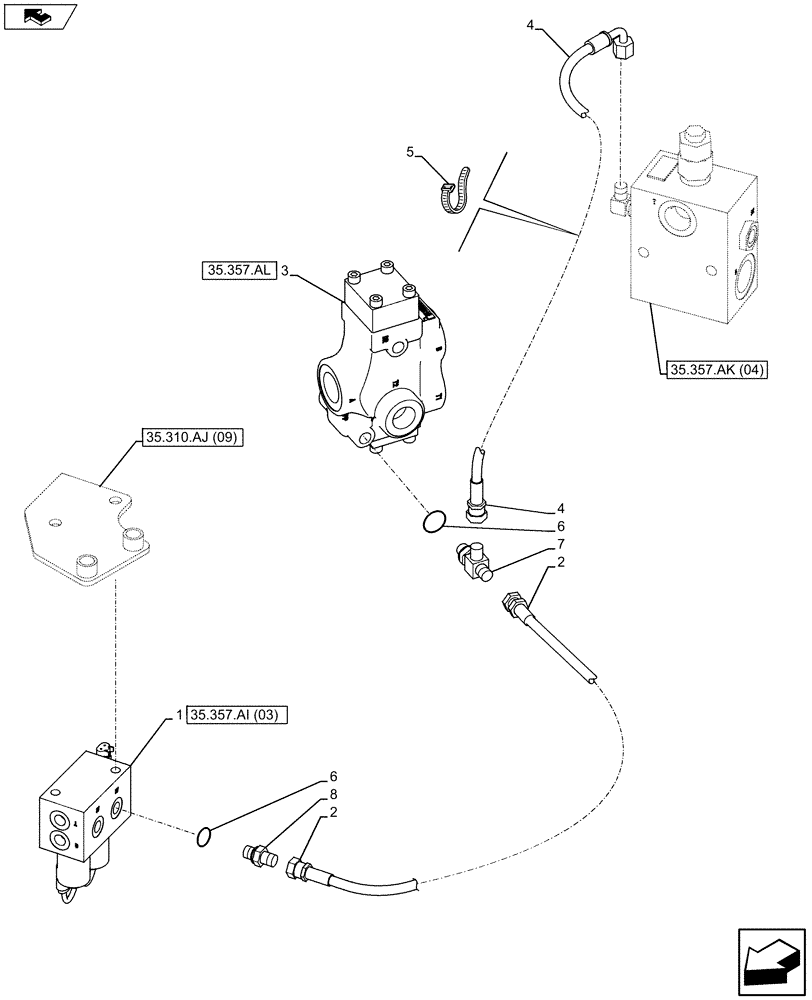

Схема запчастей Case CX75C SR - (35.357.AK[03]) - VAR - 461868 - LINES FROM CONTROL LEVER TO PILOT VALVE BLOCK (35) - HYDRAULIC SYSTEMS
35.310.aj (09)
35.357.ak (04)
4
5
1
8
7
35.357.ai (03)
6
2
3
35.357.al
4
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ14000

VALVE SECTION

1шт.

2

KHJ2065

HOSE

1шт.

3

KHJ10420

VALVE SECTION

1шт.

4

KHJ2085

HOSE

1шт.

5

150496A1

MOUNTING CLIP

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

7

159497A1

TEE

1шт.

8

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

1шт.
