(35.106.AO[01]) - PUMP OIL LINES AND FITTINGS

Запчасти Case CX75C SR (35.106.AO[01]) - PUMP OIL LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS

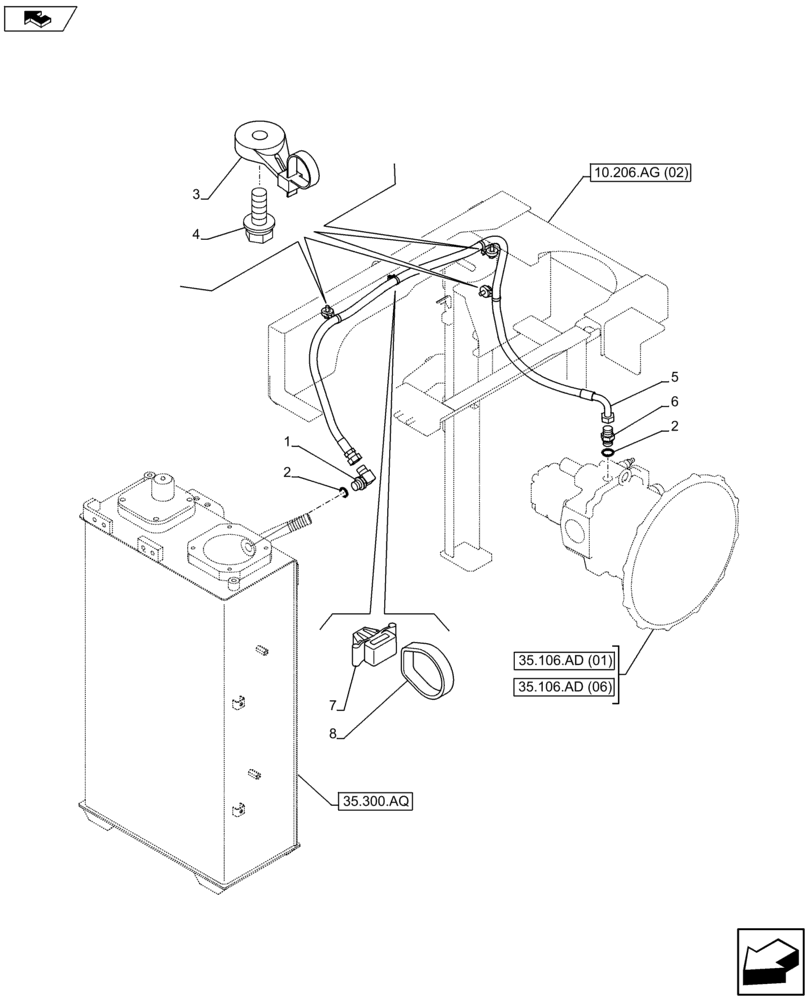

Схема запчастей Case CX75C SR - (35.106.AO[01]) - PUMP OIL LINES AND FITTINGS (35) - HYDRAULIC SYSTEMS
3
10.206.ag (02)
1
7
35.106.ad (01)
35.300.aq
6
4
2
2
8
5
35.106.ad (06)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

150919A1

ELBOW,90 Degree, 1/2" O-Ring x 1/2"

1шт.

2

154487A1

O-RING

2шт.

3

KHR2584

CLAMP

3шт.

4

KHJ1215

BOLT,Spcl

3шт.

5

KEJ0399

HYDRAULIC HOSE

1шт.

6

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

1шт.

7

KHR10220

MOUNTING CLIP

1шт.

8

150496A1

MOUNTING CLIP

1шт.
