(35.310.AJ[07]) - CONTROL VALVE LINE

Запчасти Case CX80C (35.310.AJ[07]) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS

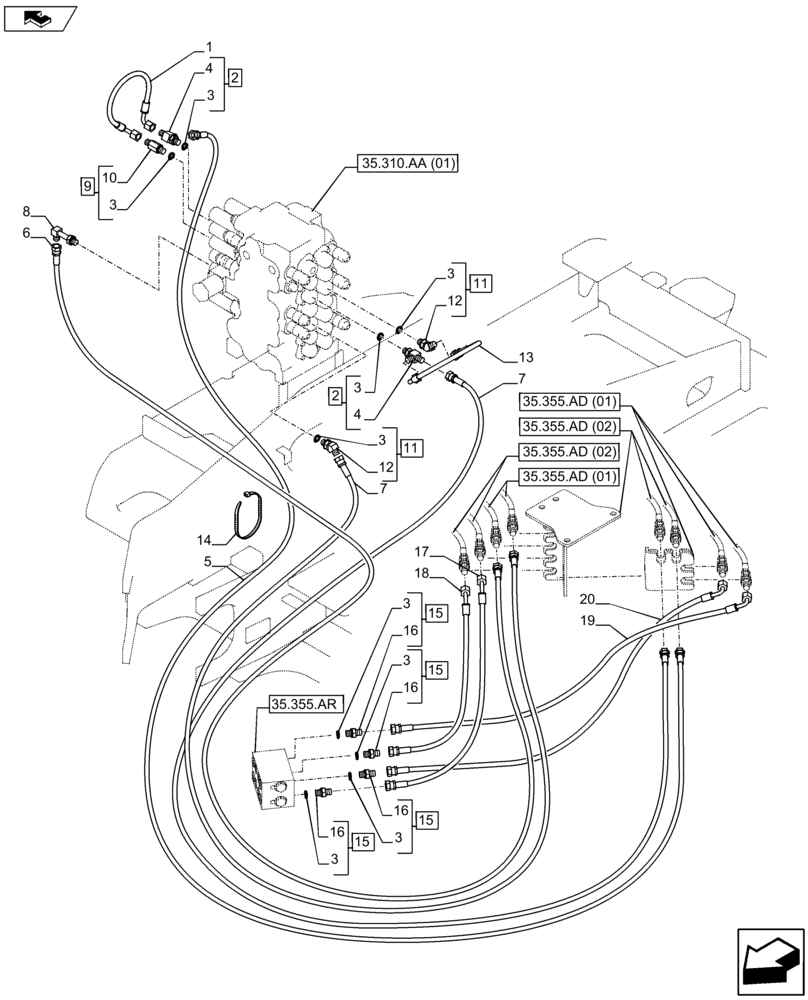

Схема запчастей Case CX80C - (35.310.AJ[07]) - CONTROL VALVE LINE (35) - HYDRAULIC SYSTEMS
2
1
35.355.ad (02)
16
3
11
18
7
35.355.ad (02)
2
7
3
3
35.355.ar
3
20
14
3
12
4
8
6
15
12
16
16
3
15
17
15
35.355.ad (01)
35.310.aa (01)
5
4
10
3
3
3
13
15
35.355.ad (01)
19
9
16
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ28120

HOSE

1шт.

2

159497A1

TEE

Assy, Incl 3, 4

2шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

4

NSS

NOT SOLD SEPARAT

Tee, Incl in 2

1шт.

5

KHJ2313

HOSE

1шт.

6

KHJ2081

HOSE

1шт.

7

KHJ2162

HOSE

2шт.

8

KHJ1178

ELBOW

1шт.

9

162554A1

FITTING

Assy, Incl 3, 10

1шт.

10

NSS

NOT SOLD SEPARAT

Adapter, Incl in 9

1шт.

11

150933A1

ELBOW

Assy, Incl 3, 12

4шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 11

1шт.

13

KHJ1387

HYDRAULIC HOSE,6.35 mm ID x 320.00 mm

1шт.

14

150496A1

MOUNTING CLIP

250 MM

3шт.

15

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 3, 16

4шт.

16

NSS

NOT SOLD SEPARAT

Adapter, Incl in 15

1шт.

17

KHJ23500

HOSE

1шт.

18

KHJ21180

HOSE

1шт.

19

KHJ2238

HOSE

1шт.

20

KHJ2342

HOSE

1шт.
