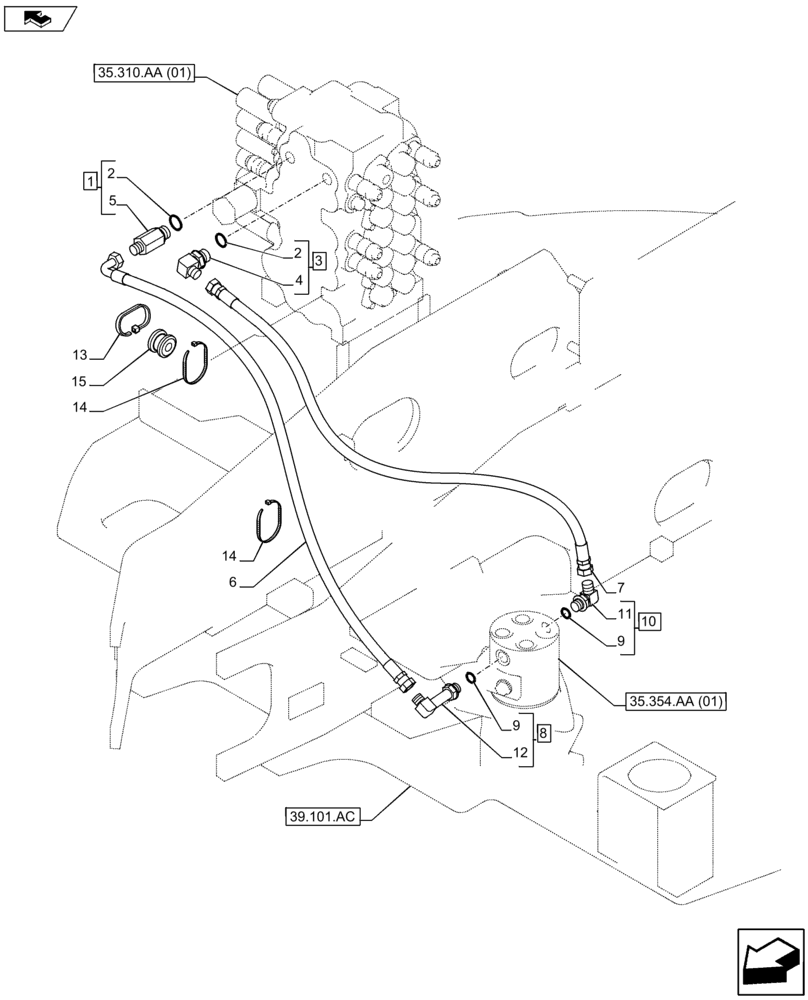

Запчасти Case CX80C (35.354.AF[02]) - SWIVEL JOINT LINES (35) - HYDRAULIC SYSTEMS

1

FAJ0224

ADAPTER

Assy, Incl 2, 5

1шт.

2

154487A1

O-RING

1шт.

3

157935A1

ELBOW

1шт.

4

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 1

1шт.

6

KAJ13610

HYDRAULIC HOSE

L1350

1шт.

7

KEJ0478

HYDRAULIC HOSE

L1280

1шт.

8

KHJ1442

ELBOW

Assy, Incl 9, 12

1шт.

9

154475A1

O-RING

1шт.

10

150916A1

ELBOW,90 Degree, 3/8" O-Ring x 3/8"

Assy, Incl 9, 11

1шт.

11

NSS

NOT SOLD SEPARAT

Elbow, Incl in 10

1шт.

12

NSS

NOT SOLD SEPARAT

Elbow, Incl in 8

1шт.

13

150071A1

MOUNTING CLIP

1шт.

14

150496A1

MOUNTING CLIP

250 MM

2шт.

15

KHJ2021

HOSE CLAMP

1шт.
