(35.356.AR[01]) - PEDAL CONTROL HOSE

Запчасти Case CX80C (35.356.AR[01]) - PEDAL CONTROL HOSE (35) - HYDRAULIC SYSTEMS

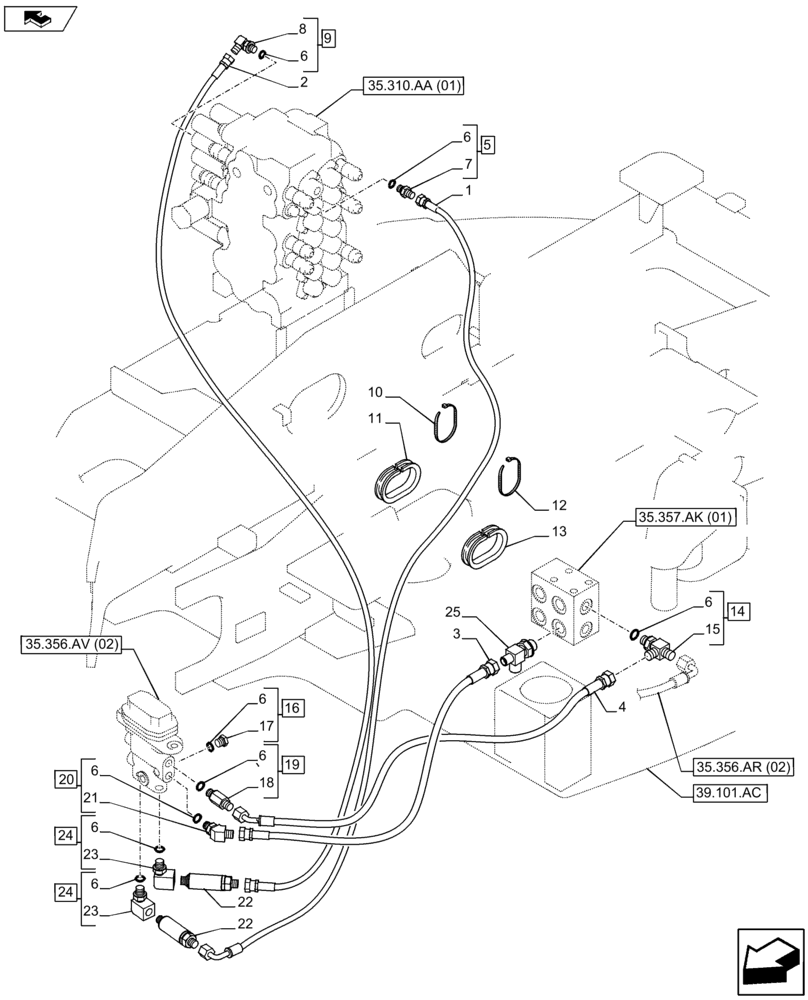

Схема запчастей Case CX80C - (35.356.AR[01]) - PEDAL CONTROL HOSE (35) - HYDRAULIC SYSTEMS
25
17
15
18
35.357.ak (01)
35.310.aa (01)
19
1
16
13
2
9
4
6
39.101.ac
6
6
6
24
24
6
7
3
35.356.ar (02)
23
22
22
20
11
6
12
8
6
23
5
10
21
35.356.av (02)
6
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KHJ2247

HOSE

1шт.

2

KHJ20480

HYDRAULIC HOSE

L2350

1шт.

3

KHJ21180

HOSE

L300

1шт.

4

KHJ16200

HYDRAULIC HOSE,6.35 mm ID x 400.00 mm

1шт.

5

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

Assy, Incl 6, 7

1шт.

6

154467A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

7

NSS

NOT SOLD SEPARAT

Adapter, Incl in 5

1шт.

8

NSS

NOT SOLD SEPARAT

Adapter, Incl in 9

1шт.

9

150913A1

ELBOW,90 Degree, 1/4" O-Ring x 1/4"

Assy, Incl 6, 8

1шт.

10

150496A1

MOUNTING CLIP

250 MM

1шт.

11

150809A1

CUSHION

1шт.

12

150071A1

MOUNTING CLIP

374 MM

2шт.

13

152516A1

CUSHION ASSY.

1шт.

14

159497A1

TEE

Assy, Incl 6, 15

1шт.

15

NSS

NOT SOLD SEPARAT

Tee, Incl in 14

1шт.

16

159002A1

PLUG

Assy, Incl 6, 17

1шт.

17

NSS

NOT SOLD SEPARAT

Plug, Incl in 16

1шт.

18

NSS

NOT SOLD SEPARAT

Adapter, Incl in 19

1шт.

19

162554A1

FITTING

Assy, Incl 6, 18

1шт.

20

KHJ0994

ADAPTER

Assy, Incl 6, 21

1шт.

21

NSS

NOT SOLD SEPARAT

Adapter, Incl in 20

1шт.

22

KHJ2925

CONTROL VALVE

2шт.

23

NSS

NOT SOLD SEPARAT

Elbow, Incl in 24

1шт.

24

KHJ0719

ELBOW

Assy, Incl 6, 23

2шт.

25

NSS

NOT SOLD SEPARAT

Tee

1шт.
