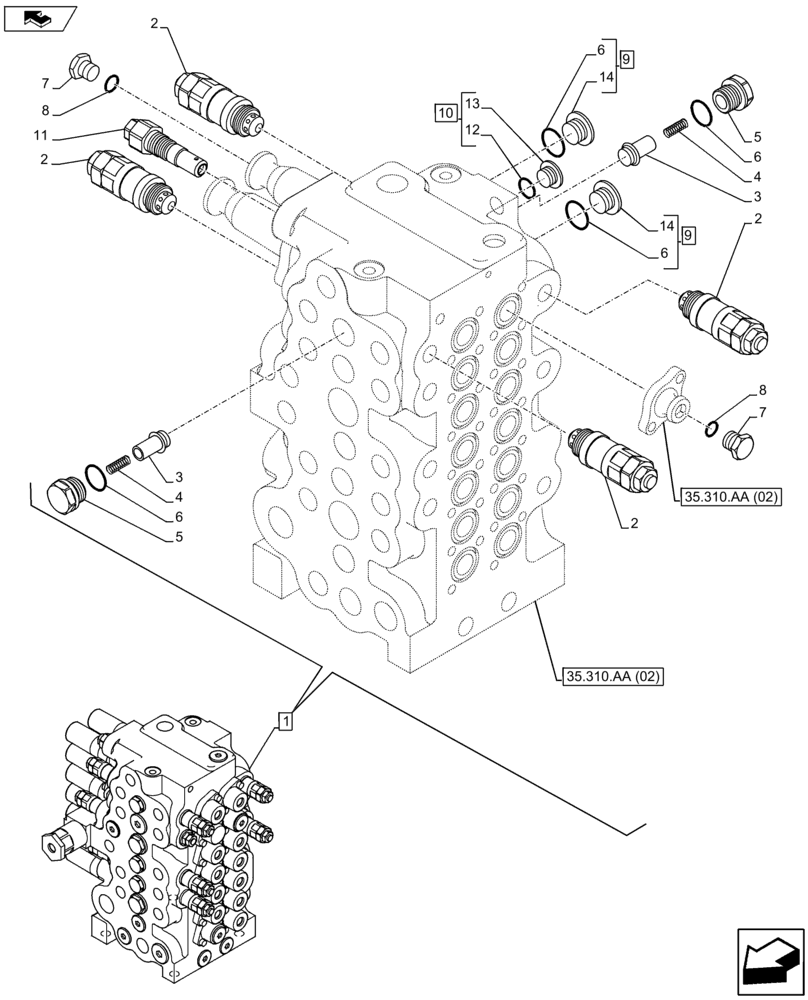

Запчасти Case CX80C (35.310.AA[04]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS

1

KAJ18390

CONTROL VALVE

Assy, Incl 2 - 14

1шт.

2

LJ020800

VALVE PRESSURE RELIE

4шт.

3

166945A1

VALVE POPPET

2шт.

4

166978A1

SPRING

2шт.

5

166840A1

PLUG

2шт.

6

154487A1

O-RING

2шт.

7

LK007130

PLUG

2шт.

8

154467A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

9

163370A1

PLUG

Assy, Incl 6, 14

2шт.

10

163369A1

PLUG

Assy, Incl 12, 13

2шт.

11

LJ020790

VALVE PRESSURE RELIE

1шт.

12

154475A1

O-RING

1шт.

13

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

1шт.

14

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

1шт.
