/ / / / / / / / (35.310.AA[08]) - CONTROL VALVE

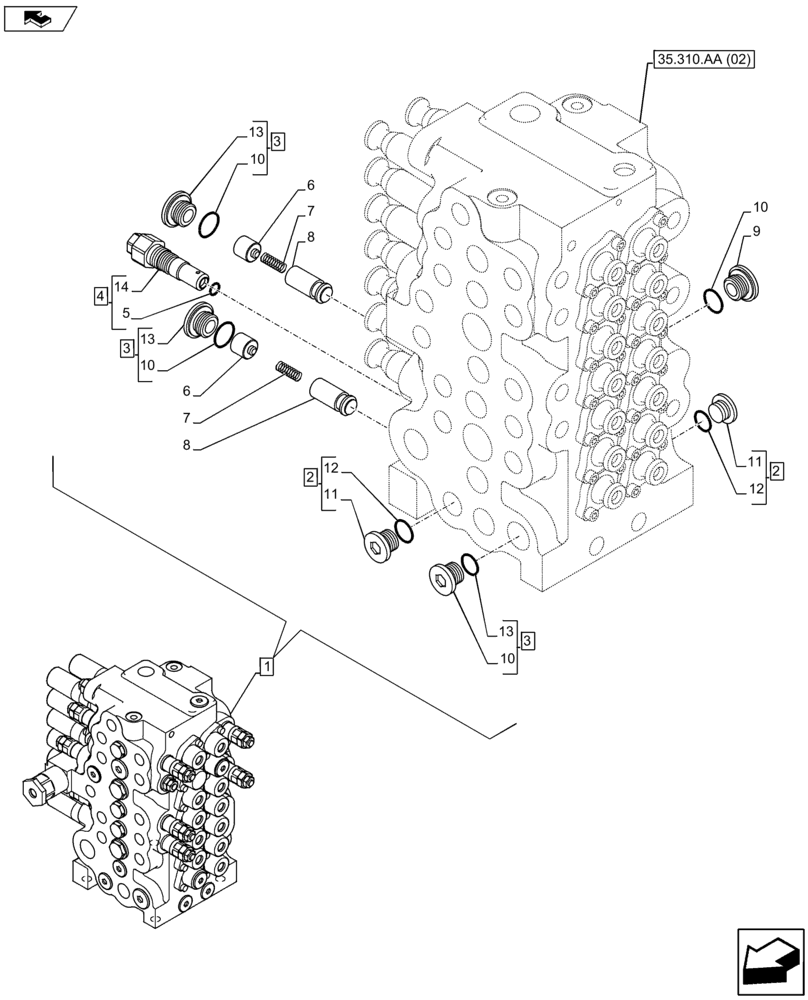

Запчасти Case CX80C (35.310.AA[08]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS
![Схема запчастей Case CX80C - (35.310.AA[08]) - CONTROL VALVE (35) - HYDRAULIC SYSTEMS](https://www.partsell.ru/storage/images/casece/5148555.png)
4
12
13
3
10
3
7
6
3
11
13
14
5
1
8
10
8
2
2
35.310.aa (02)
9
11
7
12
6
13
10
10
1
KAJ18390
CONTROL VALVE
Assy, Incl 2 - 14
1шт.
2
163369A1
PLUG
Assy, Incl 11, 12
2шт.
3
163370A1
PLUG
Assy, Incl 10, 13
3шт.
4
LJ00918
VALVE PRESSURE RELIE
Assy, Incl 5, 14
1шт.
5
155222A1
O-RING
1шт.
6
LH00314
SPACER
2шт.
7
LG00417
COMPRESSION SPRING
2шт.
8
LJ00919
POPPET
2шт.
9
LK00365
PLUG
1шт.
10
154487A1
O-RING
1шт.
11
NSS
NOT SOLD SEPARAT
Plug, Incl in 2
1шт.
12
154475A1
O-RING
1шт.
13
NSS
NOT SOLD SEPARAT
Plug, Incl in 3
1шт.
14
NSS
NOT SOLD SEPARAT
Valve, Incl in 4
1шт.
