(88.100.35[003]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, SHORT (L=2.11M)

Запчасти Case CX130D (88.100.35[003]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, SHORT (L=2.11M) (88) - ACCESSORIES

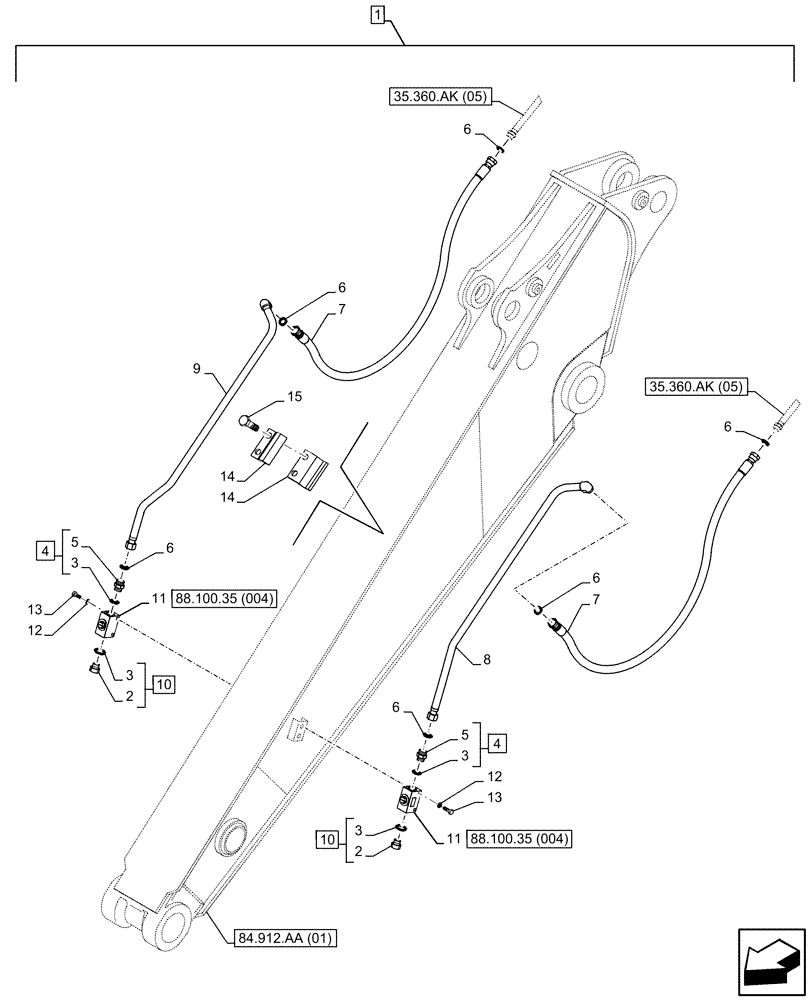

Схема запчастей Case CX130D - (88.100.35[003]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, SHORT (L=2.11M) (88) - ACCESSORIES
3
11
84.912.aa (01)
8
10
35.360.ak (05)
2
4
11
1
5
12
14
15
6
9
6
6
7
3
88.100.35 (004)
5
13
14
7
13
35.360.ak (05)
6
6
10
4
2
3
12
88.100.35 (004)
6
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0NP479-00

CONSTRUCTION DIA

Auxiliary Hydraulic Short Arm, L=2.11m, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

3

154503A1

O-RING

4шт.

4

KHJ1348

ADAPTER

ASSY, Incl 3 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

2шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

7

MFJ5048

HYDRAULIC HOSE

2шт.

8

KNV15740

HYD TUBE

1шт.

9

KNV15750

HYD TUBE

1шт.

10

152924A1

PLUG

ASSY, G3/4", Incl 2, 3 (Qty 2)

2шт.

11

KHV10710

VALVE

ASSY, RH/LH

2шт.

12

150811A1

WASHER

RH/LH

4шт.

13

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

RH/LH

4шт.

14

KHV10460

COLLAR CLAMP

8шт.

15

166352A1

BOLT

8шт.
