(88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, LONG (L=3.01M)

Запчасти Case CX130D (88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, LONG (L=3.01M) (88) - ACCESSORIES

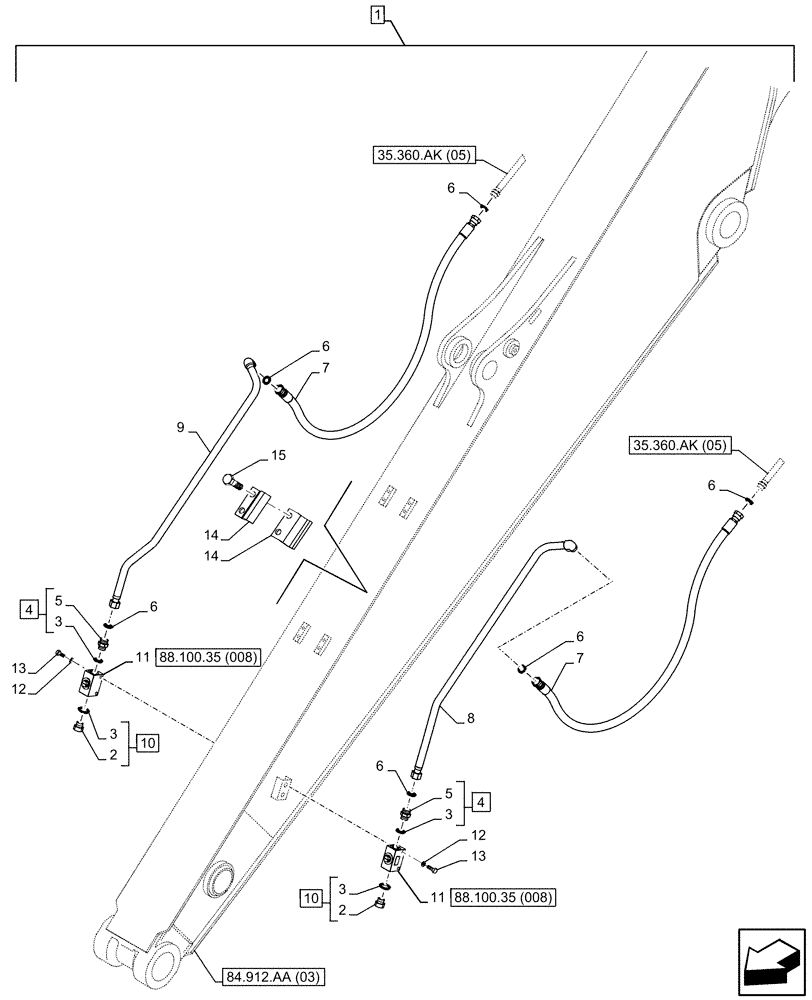

Схема запчастей Case CX130D - (88.100.35[007]) - DIA KIT, AUXILIARY HYDRAULIC, HAMMER CIRCUIT, SHEARS, HIGH FLOW, LINE, ARM, LONG (L=3.01M) (88) - ACCESSORIES
11
13
7
14
13
88.100.35 (008)
9
6
12
8
12
6
5
10
5
6
7
35.360.ak (05)
4
14
84.912.aa (03)
3
15
3
6
2
2
88.100.35 (008)
4
6
6
3
10
35.360.ak (05)
11
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0NP480-00

CONSTRUCTION DIA

Auxiliary Hydraulic Long Arm, L=3.01m, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 10

2шт.

3

154503A1

O-RING

4шт.

4

KHJ1348

ADAPTER

ASSY, Incl 3 (Qty 2), 5

2шт.

5

NSS

NOT SOLD SEPARAT

Adapter, Incl in 4

2шт.

6

KHJ1360

O-RING,0.07" Thk x 0.739" ID

6шт.

7

KNV19100

HYDRAULIC HOSE,1850.00 mm

2шт.

8

KNV16840

HYD TUBE

1шт.

9

KNV16850

HYD TUBE

1шт.

10

152924A1

PLUG

ASSY, G3/4", Incl 2, 3 (Qty 2)

2шт.

11

KHV10710

VALVE

ASSY, RH/LH

2шт.

12

150811A1

WASHER

RH/LH

4шт.

13

827-12075

BOLT,Hex, M12 x 1.75 x 75mm, Cl 10.9

RH/LH

4шт.

14

KHV10460

COLLAR CLAMP

8шт.

15

166352A1

BOLT

8шт.
