(88.100.35[009]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.11M)

Запчасти Case CX130D (88.100.35[009]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.11M) (88) - ACCESSORIES

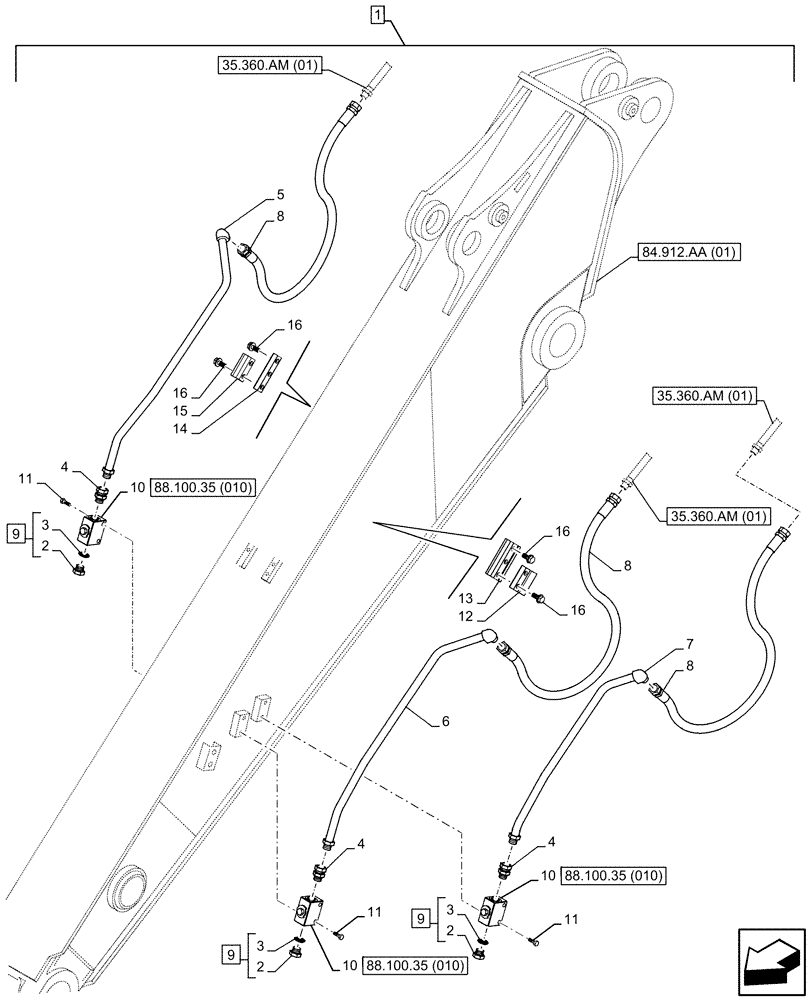

Схема запчастей Case CX130D - (88.100.35[009]) - DIA KIT, AUXILIARY HYDRAULIC, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, LINE, ARM, SHORT (L=2.11M) (88) - ACCESSORIES
11
4
9
88.100.35 (010)
35.360.am (01)
7
1
2
11
9
10
12
3
88.100.35 (010)
3
35.360.am (01)
16
4
15
13
2
3
10
8
14
84.912.aa (01)
10
16
8
4
2
88.100.35 (010)
11
35.360.am (01)
6
16
8
16
5
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG0NP482-00

CONSTRUCTION DIA

Auxiliary Hydraulic Low Flow, Short Arm, L=2.11m, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 9

3шт.

3

154487A1

O-RING

3шт.

4

KHJ1939

FITTING

G1/2" x G1/2"

3шт.

5

KNV15770

HYD TUBE

1шт.

6

KNV15760

HYD TUBE

1шт.

7

KNV15780

HYD TUBE

1шт.

8

KNV14100

HYDRAULIC HOSE,12.70 mm ID x 1400.00 mm

3шт.

9

159085A1

PLUG

ASSY, Incl 2 - 3

3шт.

10

KHV10440

VALVE

ASSY

3шт.

11

167183A1

BOLT,Sems, M12 x 60mm, Cl 10.9

6шт.

12

KHV10480

COLLAR CLAMP

1шт.

13

KHV10490

COLLAR CLAMP

1шт.

14

KHV10510

COLLAR CLAMP

1шт.

15

KHV10500

COLLAR CLAMP

1шт.

16

166352A1

BOLT

6шт.
