(88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX130D (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

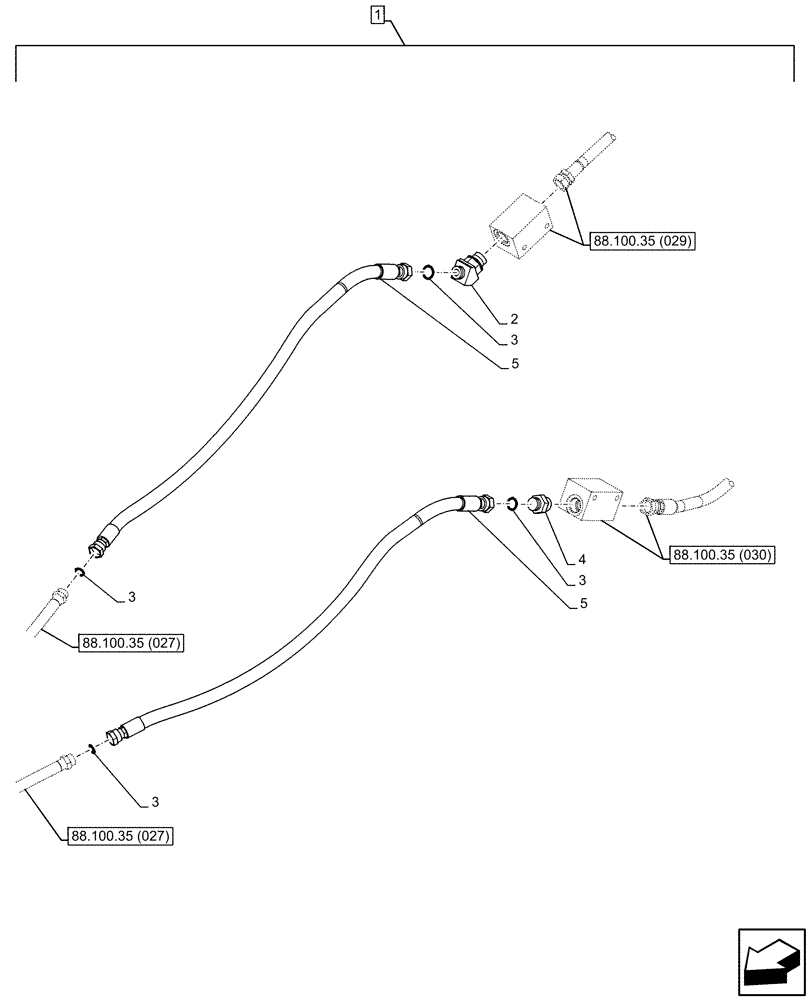

Схема запчастей Case CX130D - (88.100.35[028]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
3
5
1
2
88.100.35 (030)
88.100.35 (029)
3
88.100.35 (027)
88.100.35 (027)
3
5
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP121-00

CONSTRUCTION DIA

Single Acting Circuit Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ16290

ELBOW

1шт.

3

KHJ1360

O-RING,0.07" Thk x 0.739" ID

4шт.

4

KHJ1941

FITTING

1шт.

5

KLJ11690

HOSE ASSY.,19.00 mm ID x 1250.00 mm

2шт.
