(88.100.35[039]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG

Запчасти Case CX130D (88.100.35[039]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

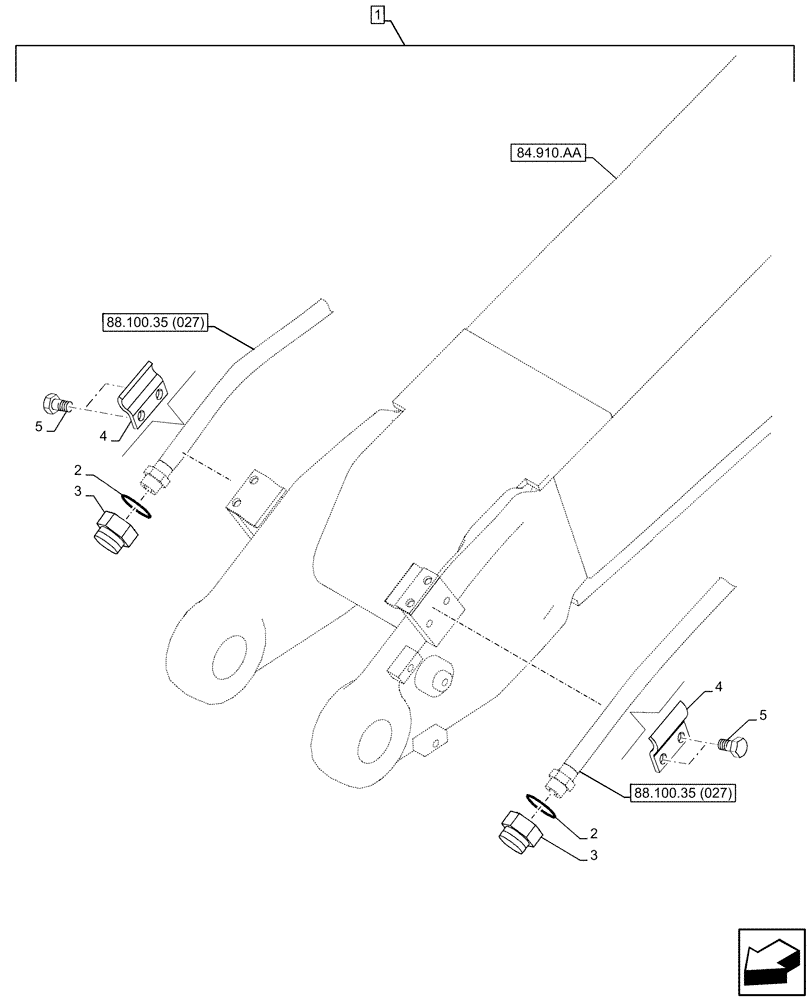

Схема запчастей Case CX130D - (88.100.35[039]) - DIA KIT, HAMMER CIRCUIT, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
4
1
84.910.aa
5
3
5
3
2
2
88.100.35 (027)
4
88.100.35 (027)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP121-00

CONSTRUCTION DIA

Single Acting Circuit Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1898

PLUG

2шт.

4

KHV10990

COLLAR

2шт.

5

166352A1

BOLT

4шт.
