(88.100.35[047]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SHUT-OFF VALVE

Запчасти Case CX130D (88.100.35[047]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SHUT-OFF VALVE (88) - ACCESSORIES

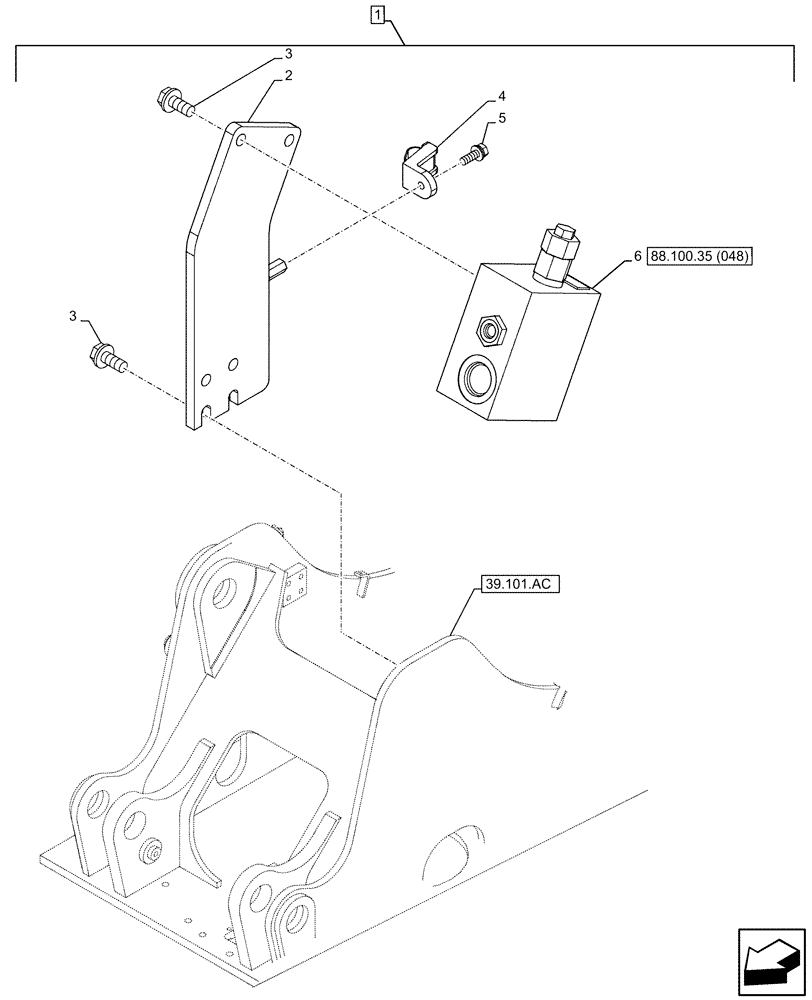

Схема запчастей Case CX130D - (88.100.35[047]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SHUT-OFF VALVE (88) - ACCESSORIES
6
88.100.35 (048)
39.101.ac
5
3
1
4
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNJ14840

BRACKET

1шт.

3

166352A1

BOLT

M12 x 30mm

6шт.

4

KHR2581

CLAMP

1шт.

5

KHJ1215

BOLT,Spcl

M8 x 25mm

1шт.

6

KHJ10410

VALVE SECTION

ASSY

1шт.
