(88.100.35[051]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR

Запчасти Case CX130D (88.100.35[051]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES

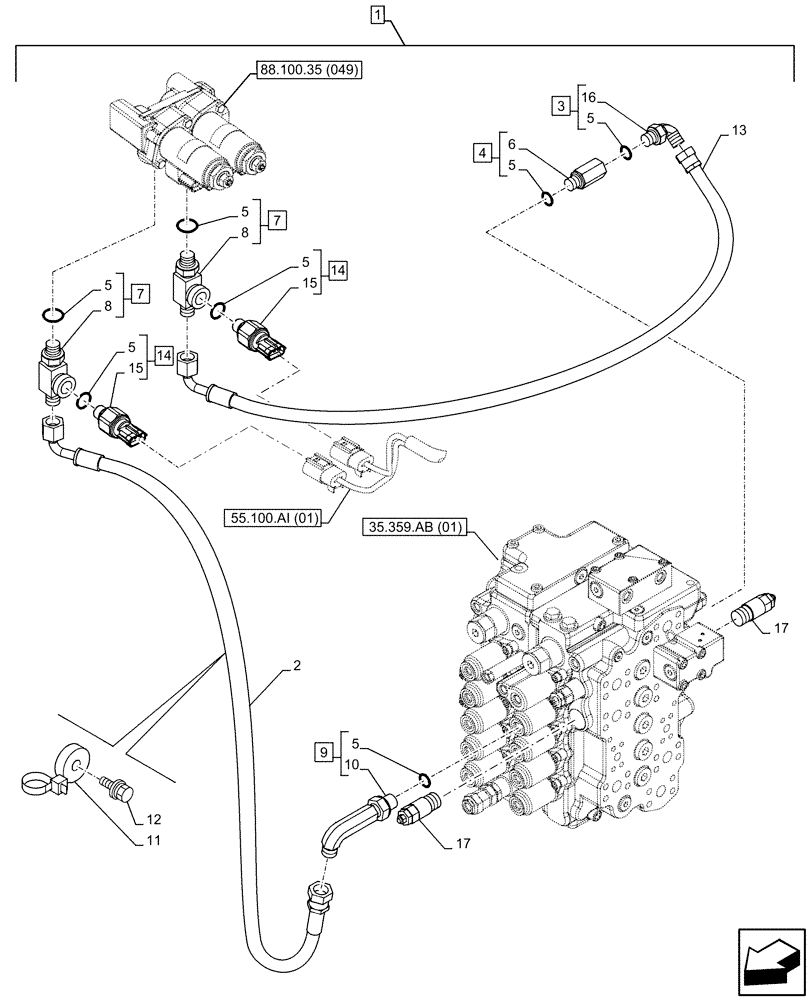

Схема запчастей Case CX130D - (88.100.35[051]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE, PRESSURE RELIEF VALVE, SENSOR (88) - ACCESSORIES
3
8
7
5
10
14
5
14
17
11
5
13
8
17
5
7
15
9
16
2
88.100.35 (049)
5
15
5
1
5
4
12
6
55.100.ai (01)
35.359.ab (01)
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 16

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2199

HOSE

6mm ID x 2950mm

1шт.

3

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 16

1шт.

4

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 6

1шт.

5

154467A1

O-RING,10.8mm ID x 2.4mm Width

7шт.

6

NSS

NOT SOLD SEPARAT

Stud, Incl in 4

1шт.

7

167666A1

FITTING

ASSY, G1/4" x G1/4" x G1/4", Incl 5 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ28810

ELBOW

ASSY, G1/4" x G1/4", Incl 5 (Qty 1), 10

1шт.

10

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 9

1шт.

11

KHR2584

CLAMP

M8

2шт.

12

KHJ1215

BOLT,Spcl

M8 x 25mm

2шт.

13

KHJ2171

HOSE

6mm ID x 2650mm

1шт.

14

KHR26940

SENSOR

ASSY, Pressure Sensor, 5MPa, Incl 5 (Qty 2), 15

2шт.

15

NSS

NOT SOLD SEPARAT

Sensor, Incl in 14

2шт.

16

NSS

NOT SOLD SEPARAT

Elbow, Incl in 3

1шт.

17

KNJ2732

VALVE, PRESSURE RELI

2шт.
