(88.100.35[052]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE

Запчасти Case CX130D (88.100.35[052]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES

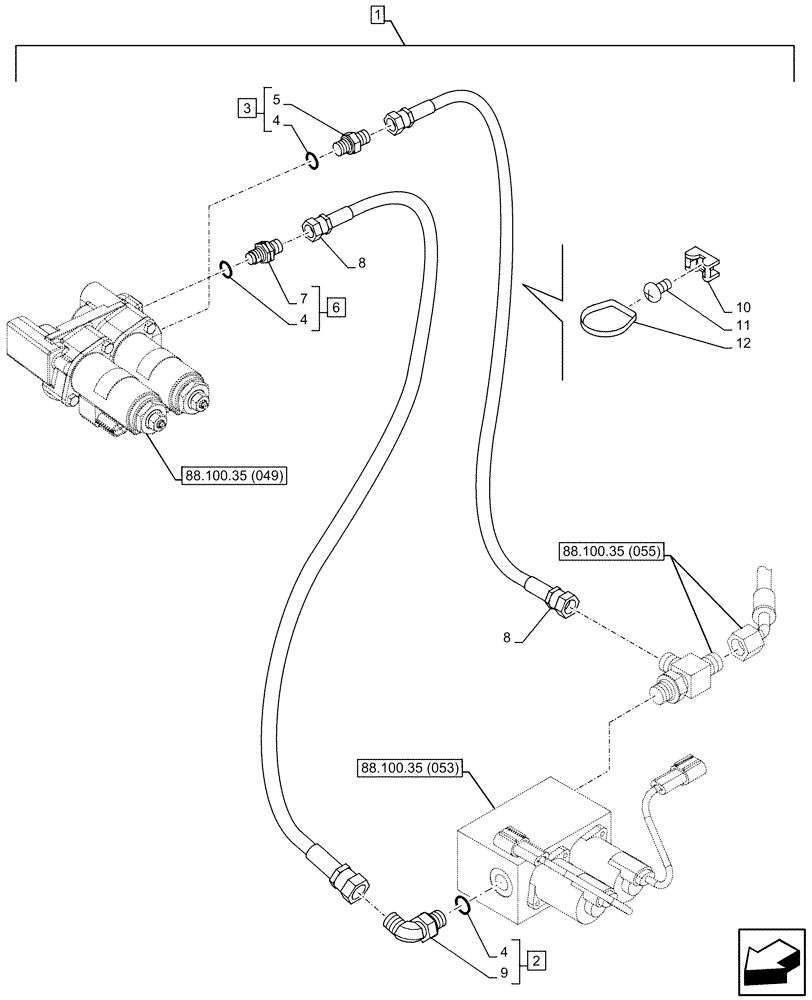

Схема запчастей Case CX130D - (88.100.35[052]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES
88.100.35 (055)
12
88.100.35 (053)
6
8
11
4
7
1
4
8
2
3
9
4
88.100.35 (049)
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 9

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

161841A1

HYD CONNECTOR

ASSY, G1/4" x G1/4", Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ2246

HOSE

6mm ID x 600mm

2шт.

9

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 2

1шт.

10

150860A1

COLLAR

2шт.

11

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

12

150496A1

MOUNTING CLIP

2шт.
