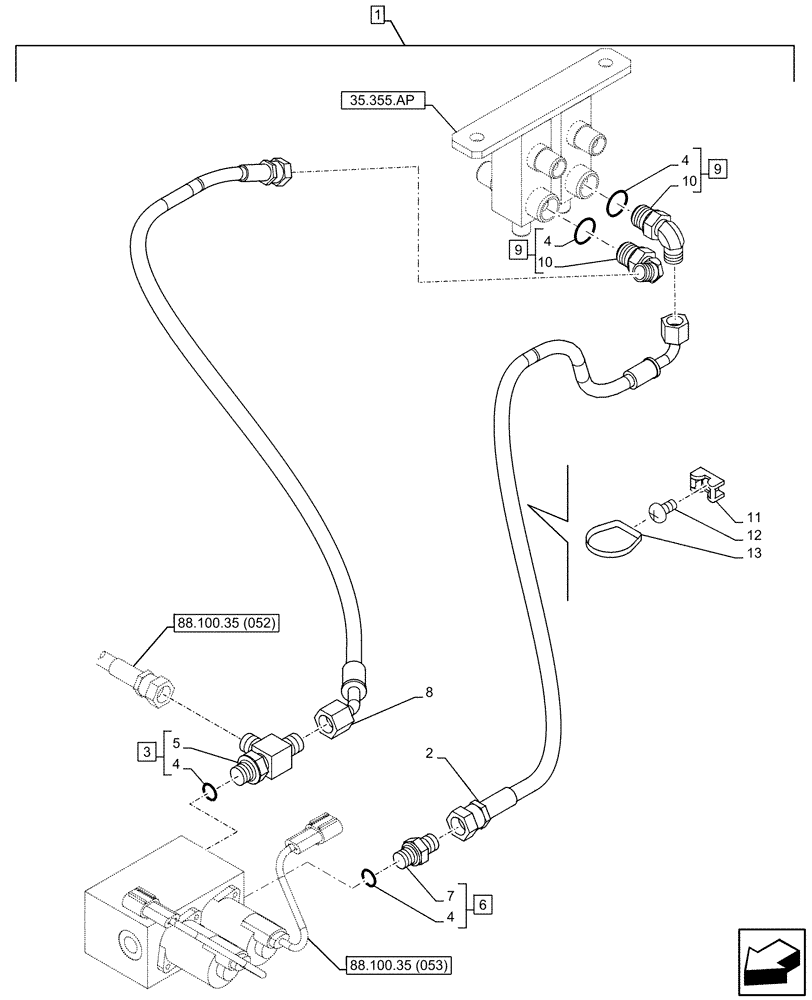

Запчасти Case CX130D (88.100.35[055]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 13

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2087

HYDRAULIC HOSE,800.00 mm

6mm ID x 800mm

1шт.

3

159497A1

TEE

ASSY, Incl 4 (Qty 1), 5

1шт.

4

154467A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

5

NSS

NOT SOLD SEPARAT

Tee, Incl in 3

1шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 4 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

KHJ12210

HOSE ASSY.

6mm ID x 620mm

1шт.

9

KHJ28580

ELBOW

ASSY, G1/4" x G1/4", Incl 4 (Qty 2), 10

2шт.

10

NSS

NOT SOLD SEPARAT

Elbow, Incl in 9

2шт.

11

150860A1

COLLAR

2шт.

12

840-168

SCREW,Pan, M6 x 1 x 8mm, Cl 4.8

2шт.

13

150496A1

MOUNTING CLIP

2шт.
