(88.100.35[061]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG

Запчасти Case CX130D (88.100.35[061]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES

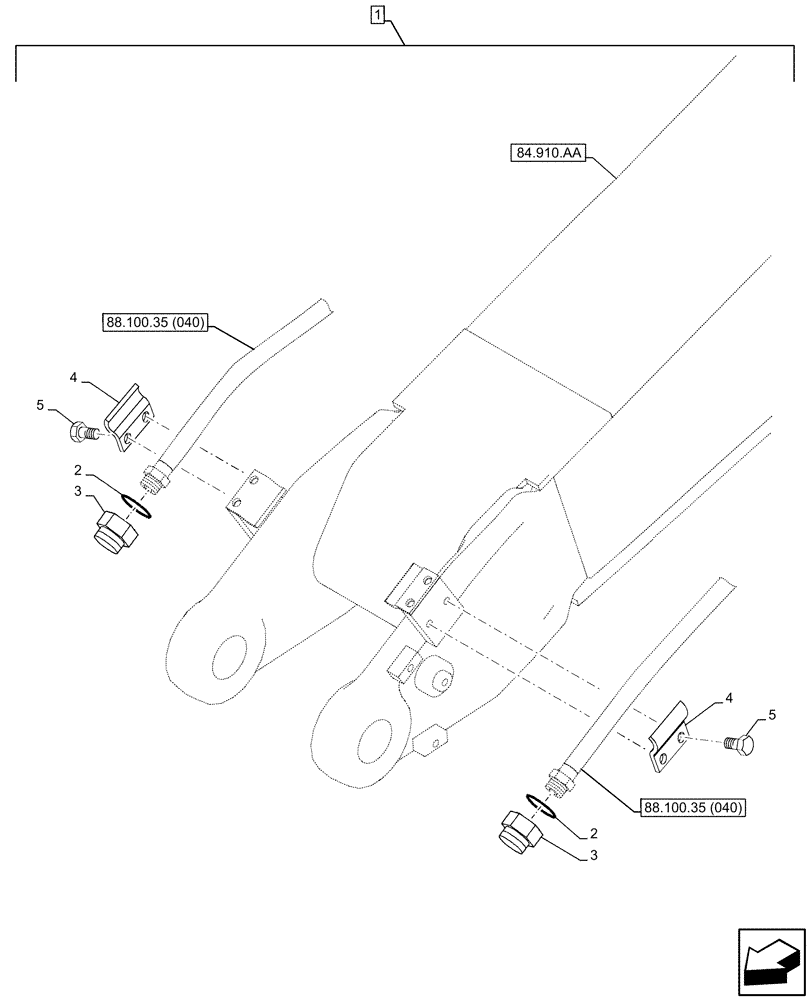

Схема запчастей Case CX130D - (88.100.35[061]) - DIA KIT, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE, PLUG (88) - ACCESSORIES
3
88.100.35 (040)
88.100.35 (040)
4
4
5
2
3
5
2
84.910.aa
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP124-00

CONSTRUCTION DIA

Multi-Purpose with 3 Way Valve Kit, Incl 2 - 5

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ1360

O-RING,0.07" Thk x 0.739" ID

2шт.

3

KHJ1898

PLUG

2шт.

4

KHV10990

COLLAR

2шт.

5

166352A1

BOLT

4шт.
