(88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE

Запчасти Case CX130D (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES

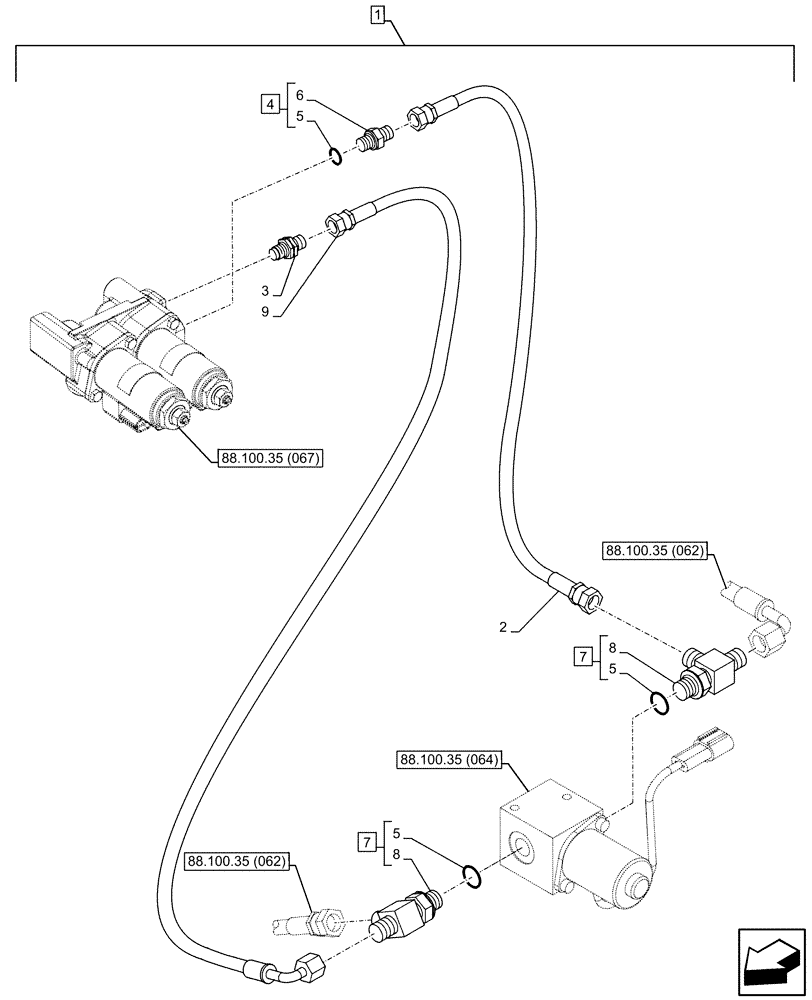

Схема запчастей Case CX130D - (88.100.35[063]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, REDUCER, LINE (88) - ACCESSORIES
1
6
4
8
8
5
7
88.100.35 (062)
88.100.35 (067)
88.100.35 (064)
5
7
2
9
5
88.100.35 (062)
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP128-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ2246

HOSE

Solenoid Valve to Reducing Valve, 6mm ID x 600mm

1шт.

3

161841A1

HYD CONNECTOR

G1/4" x G1/4"

1шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5 (Qty1), 6

1шт.

5

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

6

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

7

159497A1

TEE

ASSY, Incl 5 (Qty 2), 8

2шт.

8

NSS

NOT SOLD SEPARAT

Tee, Incl in 7

2шт.

9

KHJ2163

HOSE

Solenoid Valve to Reducing Valve, 6mm ID x 600mm

1шт.
