(88.100.35[076]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE

Запчасти Case CX130D (88.100.35[076]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES

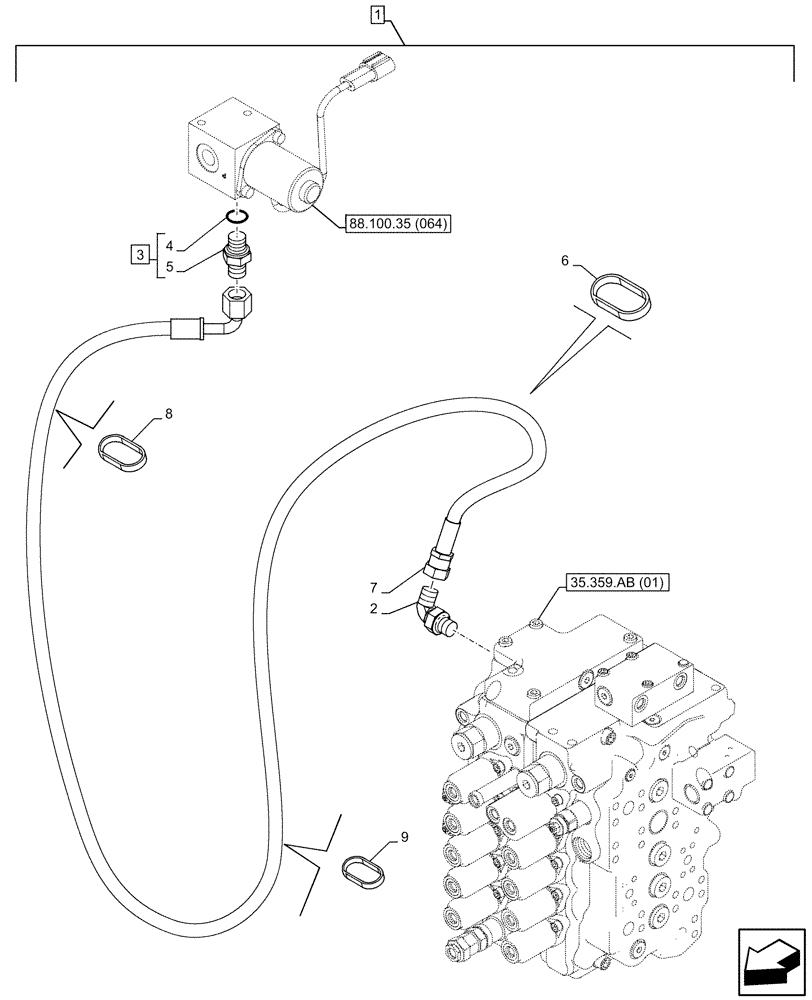

Схема запчастей Case CX130D - (88.100.35[076]) - DIA KIT, AUXILIARY CIRCUIT, SHEARS, W/ ELECTRICAL PROPORTIONAL CONTROL, SOLENOID VALVE, LINE (88) - ACCESSORIES
7
9
8
4
5
2
3
35.359.ab (01)
1
88.100.35 (064)
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP128-00

CONSTRUCTION DIA

Double Acting Circuit, Incl 2 - 9

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHJ28580

ELBOW

G1/4" x G1/4"

1шт.

3

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, G1/4" x G1/4", Incl 4, 5

1шт.

4

150960A1

O-RING,10.8mm ID x 2.4mm Width

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 3

1шт.

6

150496A1

MOUNTING CLIP

250mm

2шт.

7

KHJ18960

HOSE

6mm ID x 3400mm

1шт.

8

150071A1

MOUNTING CLIP

L=374mm

6шт.

9

150498A1

MOUNTING CLIP

L=297mm

5шт.
