(88.100.35[132]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE

Запчасти Case CX130D (88.100.35[132]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES

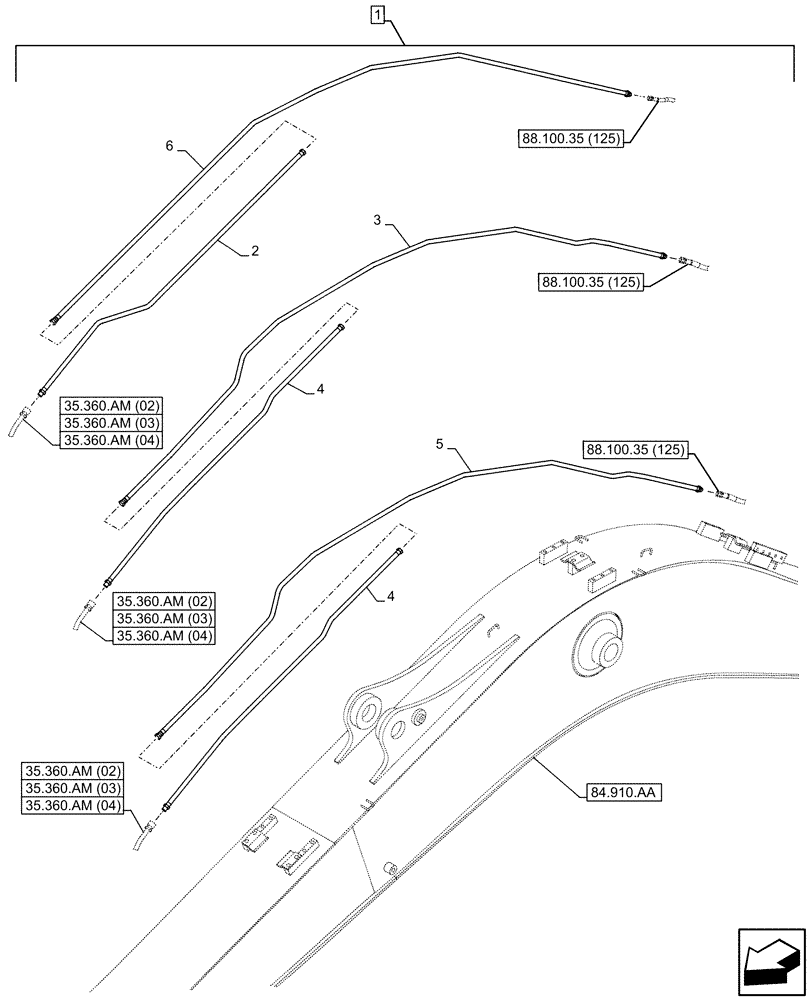

Схема запчастей Case CX130D - (88.100.35[132]) - DIA KIT, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL, BOOM, LINE (88) - ACCESSORIES
4
35.360.am (03)
1
35.360.am (03)
35.360.am (04)
35.360.am (02)
84.910.aa
88.100.35 (125)
35.360.am (03)
6
88.100.35 (125)
88.100.35 (125)
5
35.360.am (02)
35.360.am (04)
3
2
35.360.am (02)
35.360.am (04)
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP136-00

CONSTRUCTION DIA

Second Option Line Proportional, Incl 2 - 6

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KNV13980

HYD TUBE

1шт.

3

KNV16860

HYD TUBE

1шт.

4

KNV13970

HYD TUBE

2шт.

5

KNV16880

HYD TUBE

1шт.

6

KNV16870

HYD TUBE

1шт.
