(88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR

Запчасти Case CX130D (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES

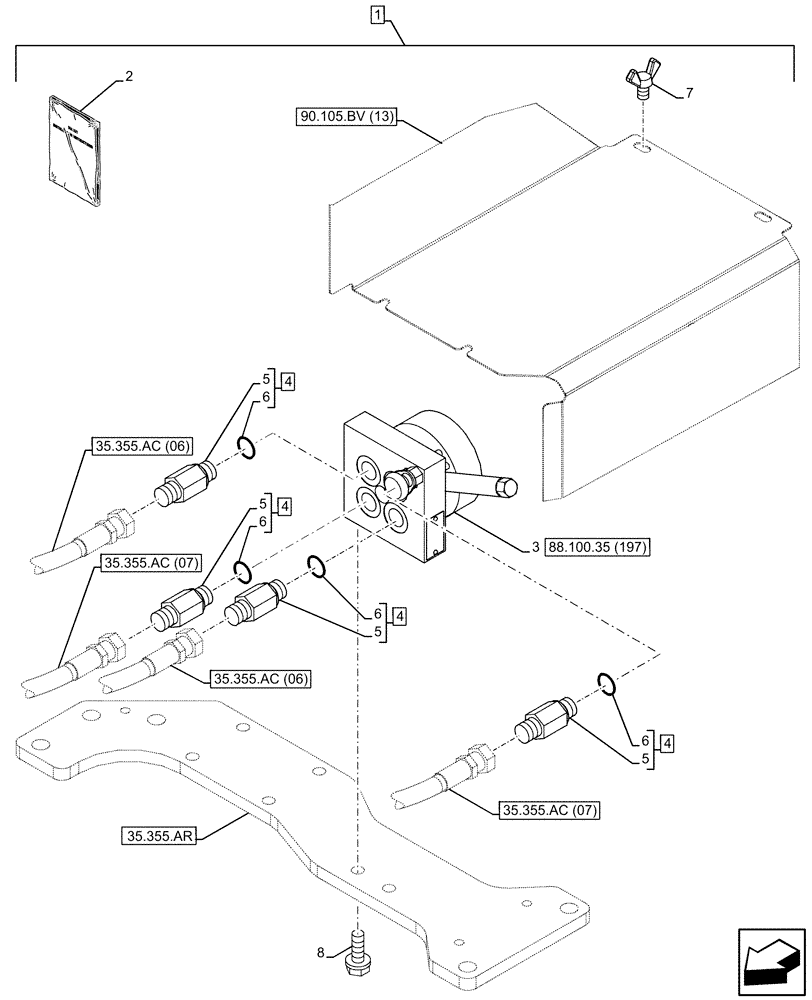

Схема запчастей Case CX130D - (88.100.35[196]) - DIA KIT, CONTROL PATTERN SELECTION, VALVE, SELECTOR (88) - ACCESSORIES
35.355.ac (06)
8
6
2
4
35.355.ac (07)
6
35.355.ac (06)
5
4
4
35.355.ar
5
3
7
35.355.ac (07)
4
90.105.bv (13)
6
6
1
5
88.100.35 (197)
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP145-00

CONSTRUCTION DIA

2 Way Selector Valve Kit, Incl 2 - 8

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47928749

INSTRUCTION

1шт.

3

KHJ12080

CONTROL BLOCK

ASSY

1шт.

4

159226A1

ADAPTER

ASSY, Incl 5, 6

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

6

154475A1

O-RING

4шт.

7

KHN17030

SPECIAL BOLT

M8 x 20mm

4шт.

8

166347A1

BOLT,Sems, M10 x 30mm

2шт.
