(88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE

Запчасти Case CX130D (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES

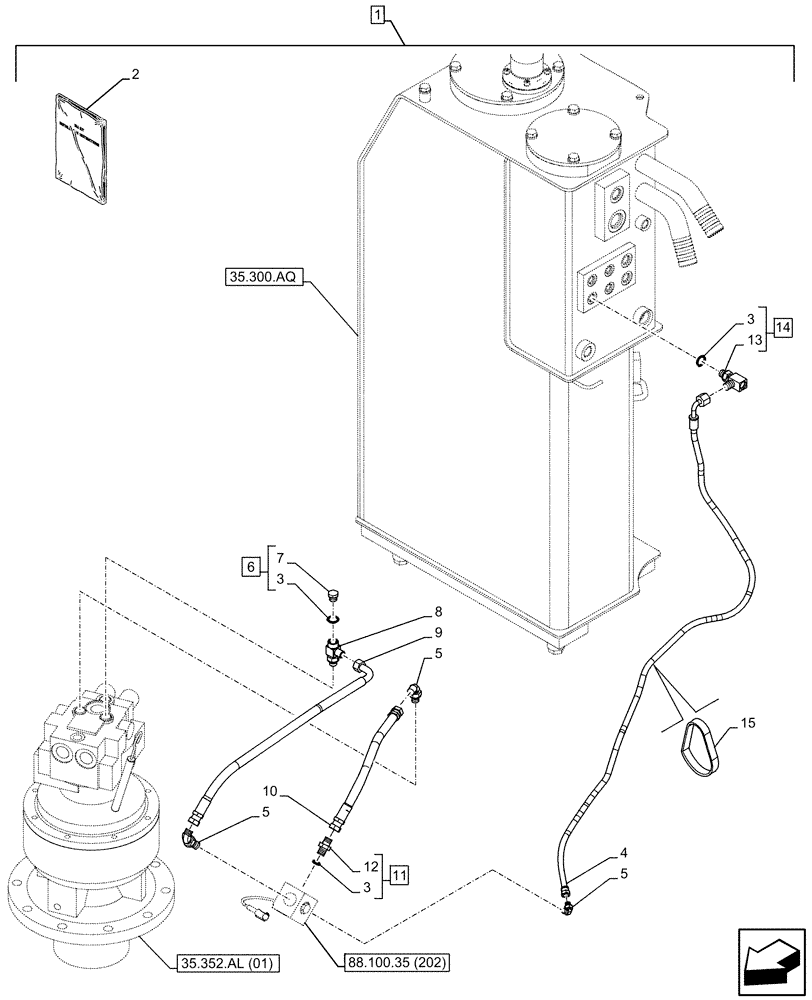

Схема запчастей Case CX130D - (88.100.35[201]) - DIA KIT, FREE SWING, MOTO-REDUCTION GEAR, LOCKOUT SOLENOID VALVE, LINE (88) - ACCESSORIES
88.100.35 (202)
11
35.300.aq
13
4
2
3
9
3
15
10
5
3
12
35.352.al (01)
7
6
5
5
14
1
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP137-00

CONSTRUCTION DIA

Free Swing Line, Incl 2 - 15

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

47900366

INSTRUCTION

1шт.

3

154467A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

KHJ2094

HOSE

6mm ID x 1250mm

1шт.

5

KHJ28580

ELBOW

3шт.

6

159002A1

PLUG

ASSY, Incl 3 (Qty 1), 7

1шт.

7

NSS

NOT SOLD SEPARAT

Plug, Incl in 6

1шт.

8

KHJ11640

ORIFICE

1шт.

9

KHJ16970

HOSE ASSY.

1шт.

10

KNJ20790

HYDRAULIC HOSE

1шт.

11

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 3 (Qty 1), 12

1шт.

12

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

1шт.

13

NSS

NOT SOLD SEPARAT

T Fitting, Incl in 14

1шт.

14

KHJ2773

TEE

ASSY, G1/4", Incl 3 (Qty 1), 13

1шт.

15

150496A1

MOUNTING CLIP

2шт.
