(88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT

Запчасти Case CX130D (88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES

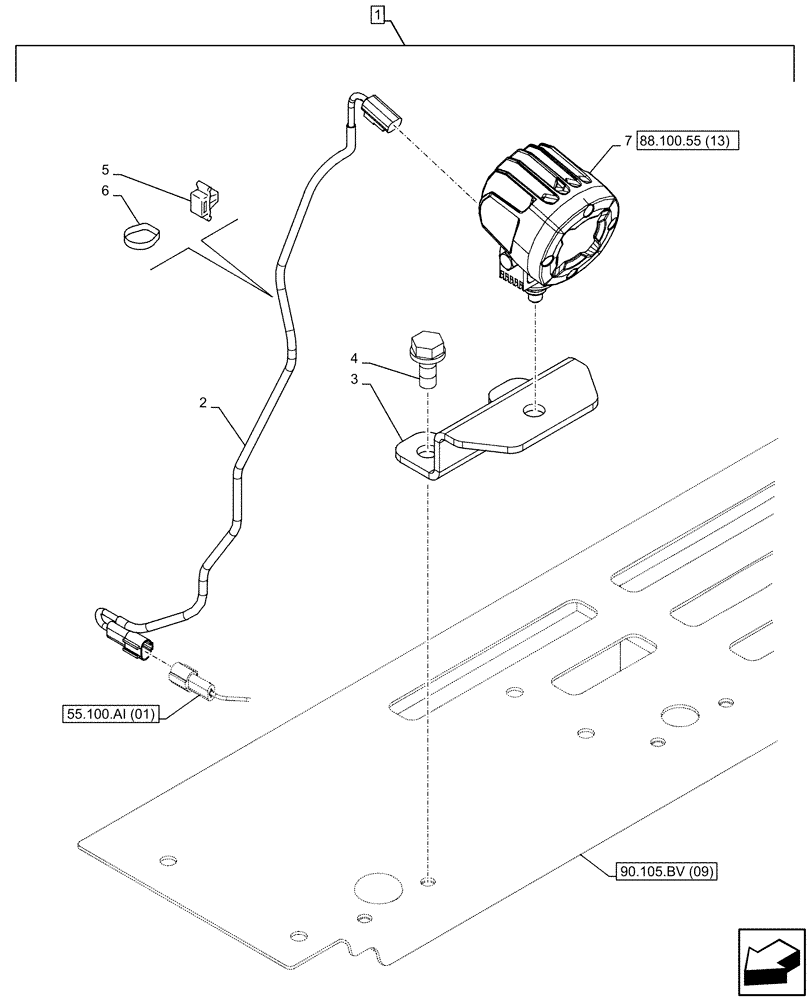

Схема запчастей Case CX130D - (88.100.55[12]) - DIA KIT, RIGHT, LEFT, REAR VIEW CAMERA, LIGHT (88) - ACCESSORIES
90.105.bv (09)
55.100.ai (01)
3
4
5
88.100.55 (13)
2
6
7
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KG1NP147-00

CONSTRUCTION DIA

Right, Left, Rear View Camera, Light, Incl 2 - 7

1шт.

To See Full DIA KIT Composition Look for all the Figures Where the DIA KIT P/N Is Shown

1шт.

2

KHR41840

WIRE HARNESS

1шт.

3

KHR43760

BRACKET

1шт.

4

166347A1

BOLT,Sems, M10 x 30mm

2шт.

5

KHR10220

MOUNTING CLIP

4шт.

6

150496A1

MOUNTING CLIP

4шт.

7

KHR37950

WORK LAMP

Led Lamp 24V 13W, ASSY

1шт.
