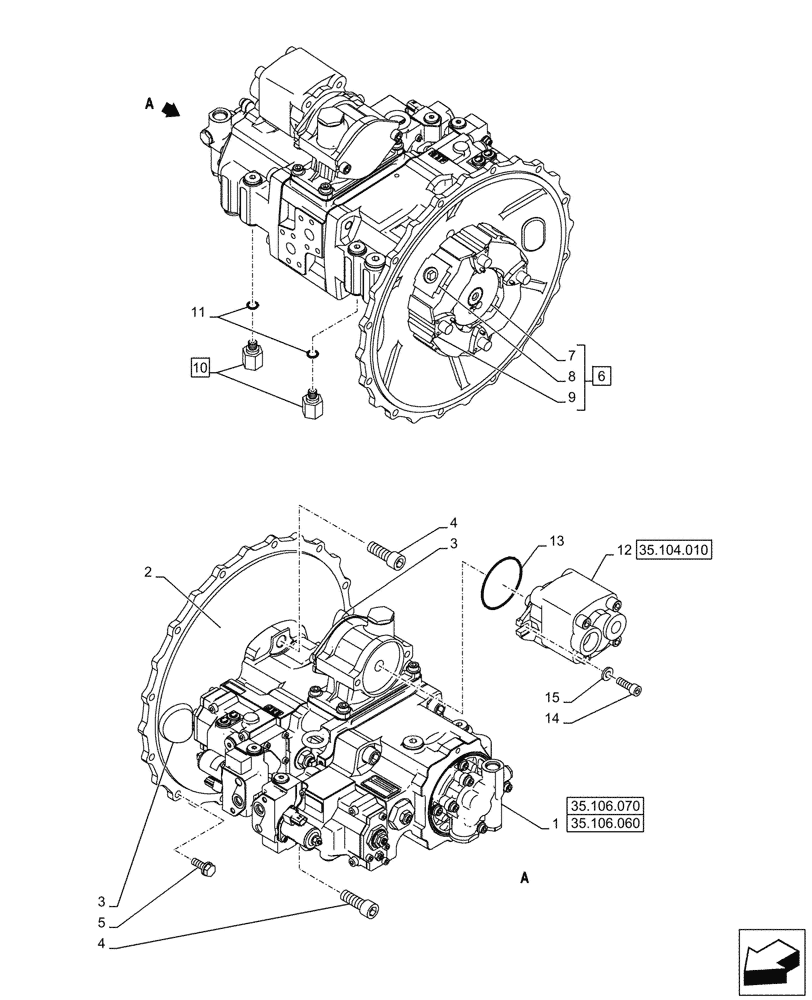

Запчасти Case CX145D SR LC (35.106.050) - VAR - 461863 - VARIABLE DELIVERY HYDRAULIC PUMP, CLAMSHELL BUCKET, ROTATION, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

1

KMJ21960

HYDRAULIC PUMP

ASSY

1шт.

2

KNJ11750

FLANGE

1шт.

3

KHJ2656

GROMMET

2шт.

4

108R016Y045R

BOLT

M16 x 45mm

2шт.

5

166347A1

BOLT,Sems, M10 x 30mm

M10 x 30mm

12шт.

6

KNJ19710

FLEXIBLE COUPLING

ASSY, Incl 7 - 9

1шт.

7

KMJ2661

ELEMENT

1шт.

8

KNJ21000

INSERT

4шт.

9

KNJ21010

INSERT

1шт.

10

KHJ18180

STUD

ASSY, G1/4" x M18 Incl 11

2шт.

11

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

12

KRJ34770

PUMP

ASSY

1шт.

13

UCD0096

O-RING

1шт.

14

862-10030

HEX SOC SCREW,M10 x 30mm, Cl 12.9

M10 x 30mm

2шт.

15

150409A1

WASHER

M12

2шт.
