(35.353.AB[02]) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS

Запчасти Case CX160D LC (35.353.AB[02]) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS

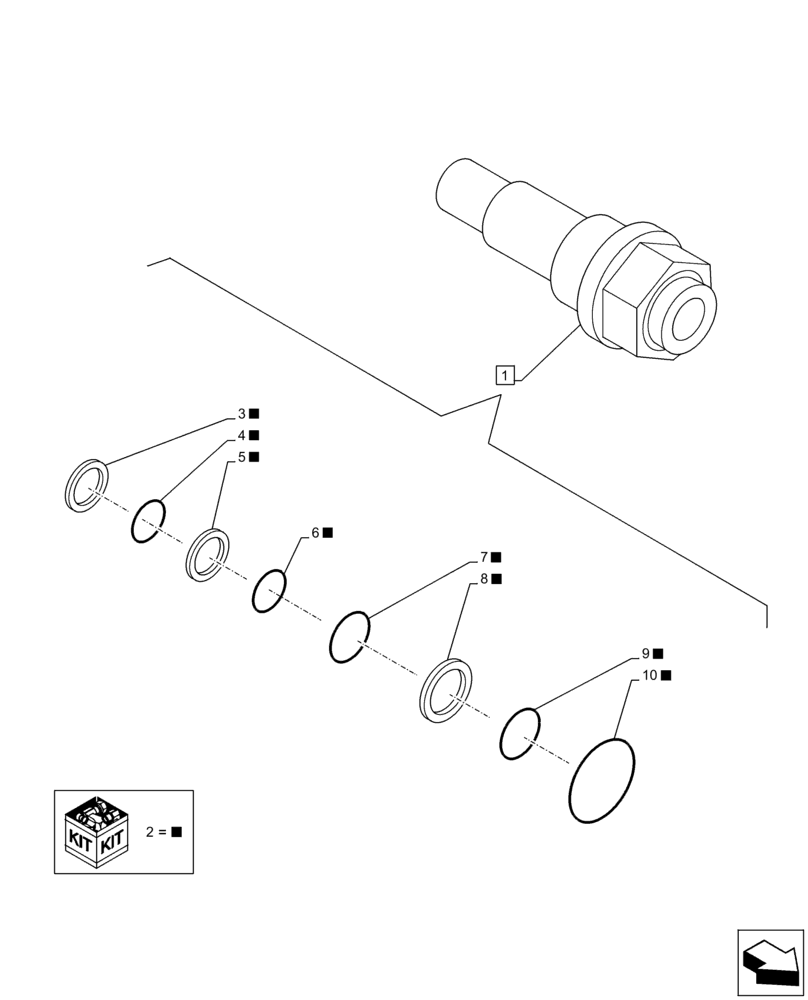

Схема запчастей Case CX160D LC - (35.353.AB[02]) - TRAVEL MOTOR & REDUCTION GEAR, RELIEF VALVE, COMPONENTS (35) - HYDRAULIC SYSTEMS
2
2
10
2
2
2
1
2
2
2
8
5
6
7
9
4
2
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

160565A1

VALVE

ASSY, Incl 2 - 10

2шт.

Parts are included in Travel Motor Assembly PN KLA11000

1шт.

2

LZ011370

KIT

1шт.

See als Figure 35.353.AD(02), 35.353.AD(03)

1шт.

3

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 1

1шт.

4

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 1

1шт.

6

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

7

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

8

NSS

NOT SOLD SEPARAT

Ring back up, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

O-Ring, Incl in 1

1шт.
