(35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES

Запчасти Case CX160D LC (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS

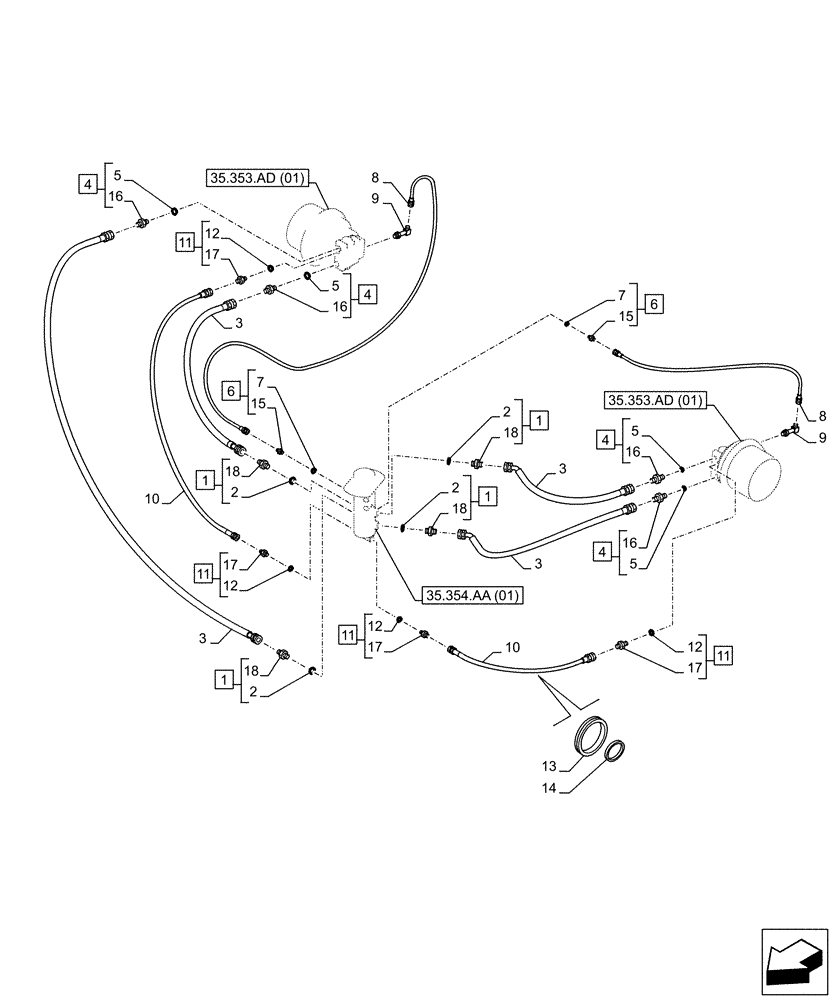

Схема запчастей Case CX160D LC - (35.353.AE) - TRAVEL MOTOR & REDUCTION GEAR, LINES (35) - HYDRAULIC SYSTEMS
10
2
4
16
11
16
7
18
4
9
5
8
11
12
9
11
18
17
35.354.aa (01)
5
14
35.353.ad (01)
18
2
12
2
16
15
4
17
18
16
4
12
2
5
1
6
8
35.353.ad (01)
12
7
3
6
13
3
1
10
5
17
15
3
1
3
1
11
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

151654A1

HYD CONNECTOR,3/4" NPT O-Ring x 3/4" NPT

ASSY, Incl 2, 18

4шт.

2

150542A1

O-RING

4шт.

3

KLA10210

HYDRAULIC HOSE,19.00 mm ID x 1800.00 mm

1800mm

4шт.

4

169040A1

ADAPTER

ASSY, Incl 5, 16

4шт.

5

152211A1

O-RING

4шт.

6

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 7, 15

2шт.

7

150960A1

O-RING,10.8mm ID x 2.4mm Width

2шт.

8

KAJ3096

HYDRAULIC HOSE

2350mm

2шт.

9

KHJ1178

ELBOW

2шт.

10

KHJ1144

HYDRAULIC HOSE,12.70 mm ID x 1800.00 mm

1800mm

2шт.

11

151650A1

HYD CONNECTOR,1/2" NPT O-Ring x 1/2" NPT

ASSY, Incl 12, 17

4шт.

12

150539A1

O-RING

4шт.

13

150876A1

RUBBER BLOCK

2шт.

14

150071A1

MOUNTING CLIP

380mm

4шт.

15

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

2шт.

16

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

17

NSS

NOT SOLD SEPARAT

Fitting, Incl in 11

4шт.

18

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.
