(35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION

Запчасти Case CX160D LC (35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

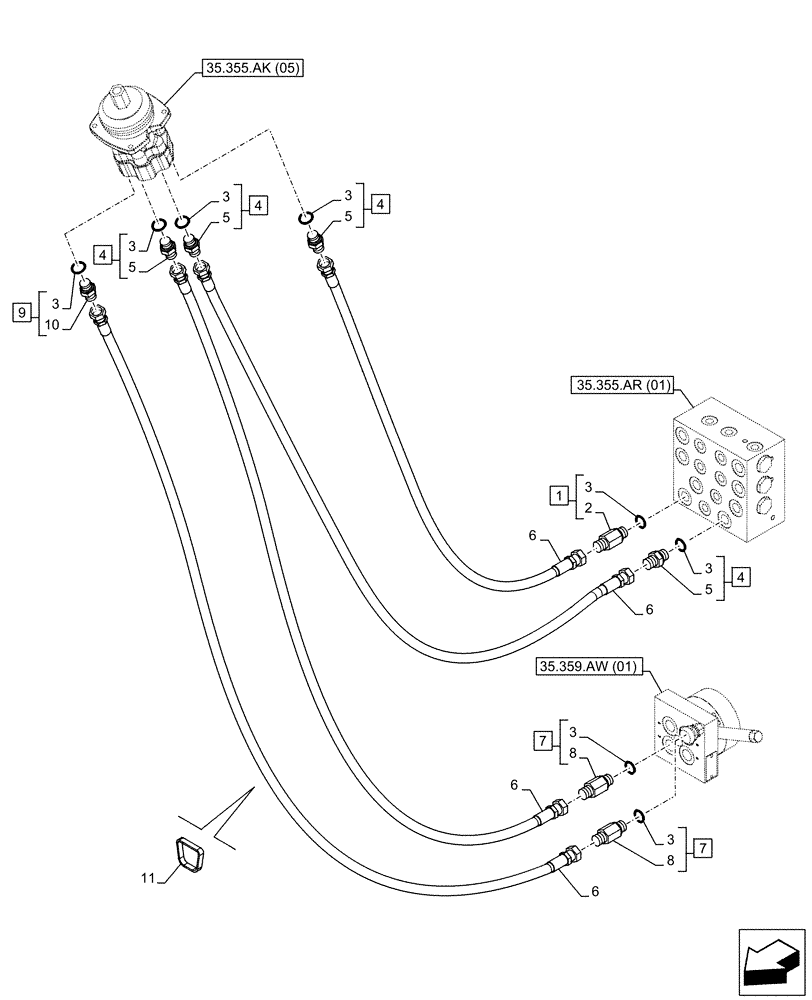

Схема запчастей Case CX160D LC - (35.355.AC[07]) - VAR - 461558 - JOYSTICK, LH, HYDRAULIC LINE, CONTROL VALVE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
3
9
35.355.ar (01)
3
2
4
35.355.ak (05)
1
4
7
5
3
6
6
35.359.aw (01)
6
5
4
6
3
3
5
10
3
11
4
3
7
8
5
3
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

KAJ2351

FITTING

ASSY, G3/8" x G3/8", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150031A1

O-RING,10mm ID x 24mm OD

8шт.

4

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, Incl 5, 3 (Qty 1)

4шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

4шт.

6

159217A1

HYDRAULIC HOSE

9mm ID x 1850mm

4шт.

7

159226A1

ADAPTER

ASSY, Incl 8, 3 (Qty 1)

1шт.

8

NSS

NOT SOLD SEPARAT

Fitting, Incl in 7

1шт.

9

KHJ1402

ADAPTER

ASSY, Incl 10, 3 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

150498A1

MOUNTING CLIP

300mm

1шт.
