(35.355.AK[03]) - VAR - 461868 - JOYSTICK, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL

Запчасти Case CX160D LC (35.355.AK[03]) - VAR - 461868 - JOYSTICK, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS

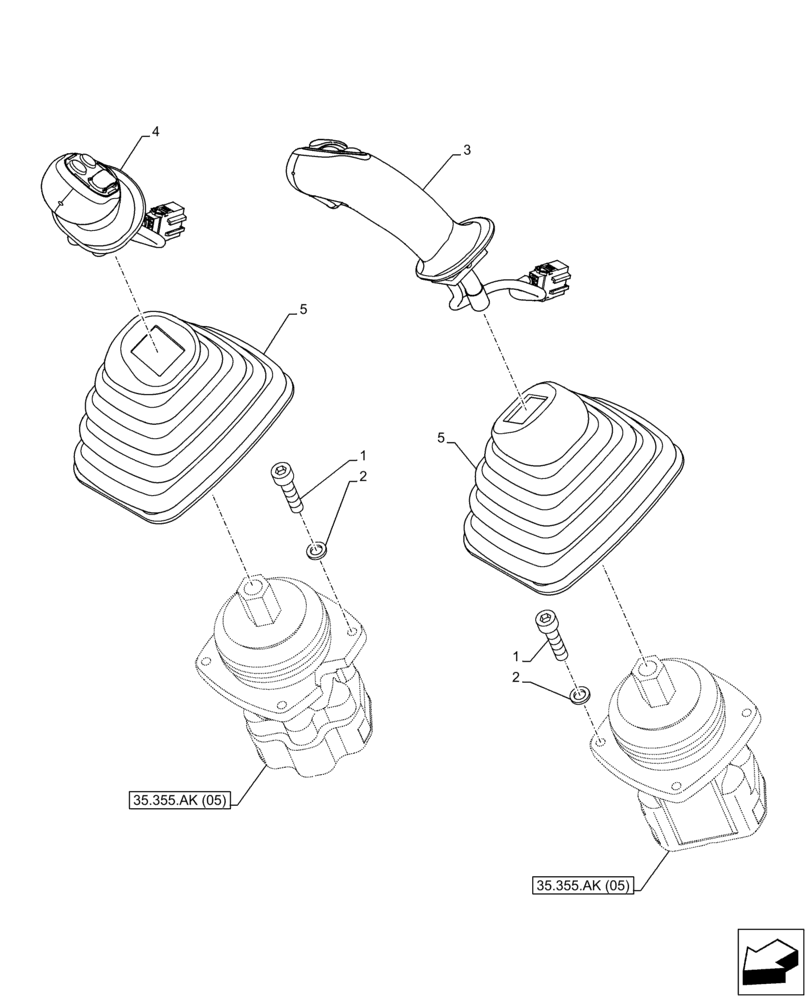

Схема запчастей Case CX160D LC - (35.355.AK[03]) - VAR - 461868 - JOYSTICK, HAMMER CIRCUIT, HIGH FLOW, W/ ELECTRICAL PROPORTIONAL CONTROL (35) - HYDRAULIC SYSTEMS
35.355.ak (05)
1
3
1
35.355.ak (05)
4
5
2
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

862-6025

HEX SOC SCREW,M6 x 25mm, Cl 12.9

6шт.

2

892-11006

LOCK WASHER,M6

6шт.

3

KHJ28540

JOYSTICK

Switch Proportional Left

1шт.

4

KHJ28550

JOYSTICK

Switch Proportional Right

1шт.

Can be Equipped with VAR. 461865 or 461868 or 461869 or 461871

1шт.

5

KHN16760

BELLOWS

2шт.
