(35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION

Запчасти Case CX160D LC (35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS

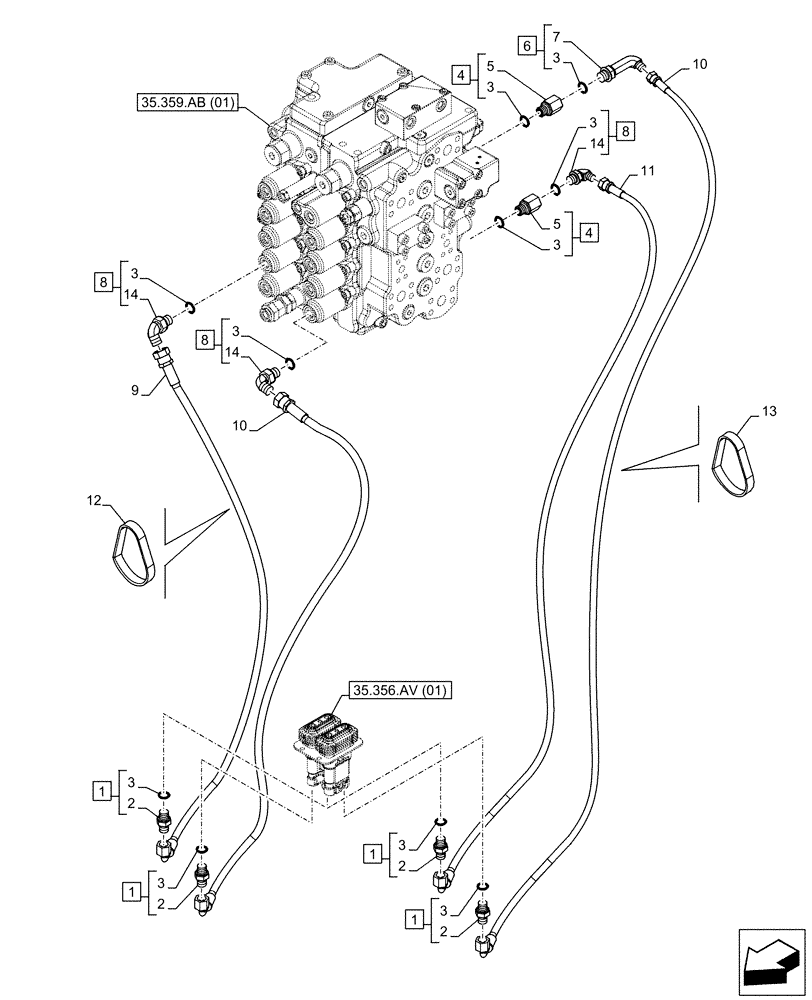

Схема запчастей Case CX160D LC - (35.356.AR[02]) - STD + VAR - 461558 - PEDAL, DRAIN LINE, CONTROL PATTERN SELECTION (35) - HYDRAULIC SYSTEMS
5
14
2
8
1
3
3
1
3
35.359.ab (01)
10
3
7
2
11
3
35.356.av (01)
13
14
4
4
8
2
2
12
3
3
10
5
3
8
3
6
1
3
1
14
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 2, 3 (Qty 1)

4шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

4шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

10шт.

4

KHJ13640

STUD

ASSY, Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

2шт.

6

KHJ28810

ELBOW

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 6

1шт.

8

KHJ28580

ELBOW

ASSY, Incl 14, 3 (Qty 1)

3шт.

9

KHJ2199

HOSE

6mm ID x 2950mm

1шт.

10

KHJ2340

HOSE

6mm ID x 2750mm

2шт.

11

KHJ2198

HOSE,6.3mm ID x 2850mm L

6mm ID x 2850mm

1шт.

12

150498A1

MOUNTING CLIP

300mm

1шт.

13

150071A1

MOUNTING CLIP

380mm

1шт.

14

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 8

3шт.
