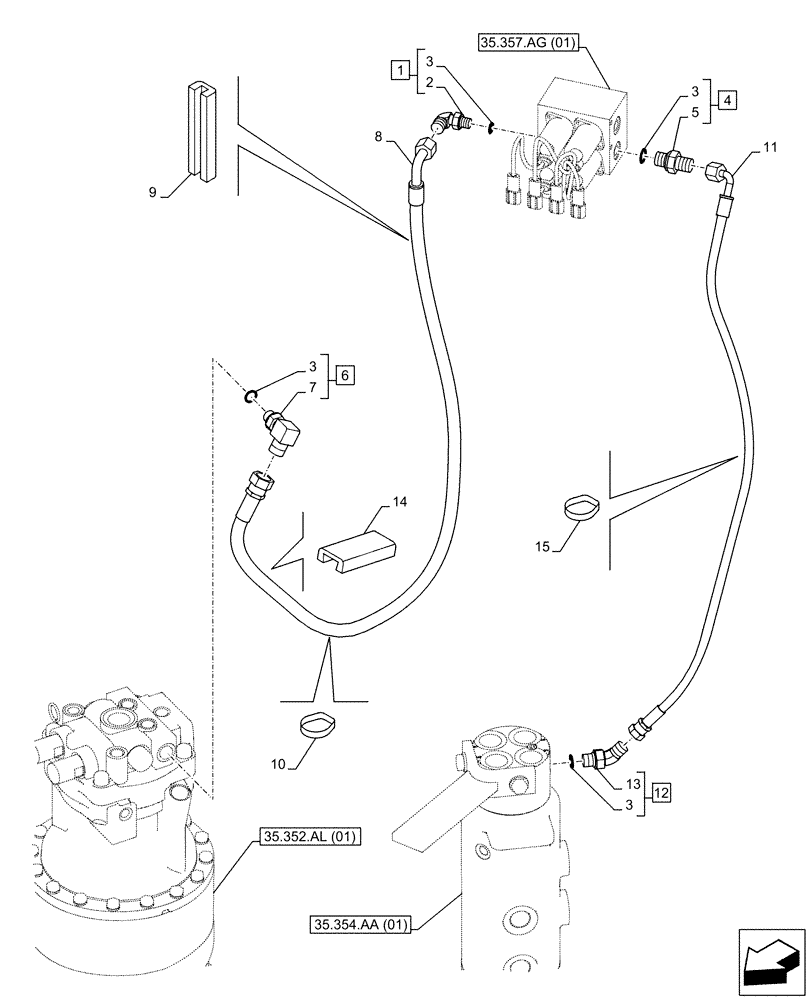

Запчасти Case CX160D LC (35.357.AO[01]) - MAIN, SOLENOID VALVE, PRESSURE PIPE (35) - HYDRAULIC SYSTEMS

1

KHJ28710

ELBOW

ASSY, Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

90° Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

4шт.

4

152127A1

HYD CONNECTOR,1/4" NPT O-Ring x 1/4" NPT

ASSY, Incl 5, 3 (Qty 1)

1шт.

5

NSS

NOT SOLD SEPARAT

Fitting, Incl in 4

1шт.

6

153559A1

ELBOW

ASSY, Incl 7, 3 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 6

1шт.

8

KHJ2107

HOSE,9.5mm ID x 2400mm L

9mm ID x 2400mm

1шт.

9

KAJ4091

RUBBER SEAL

100mm

1шт.

10

150496A1

MOUNTING CLIP

250mm

1шт.

11

KHJ2197

HOSE

6mm ID x 2350mm

1шт.

12

KHJ28630

ELBOW

ASSY, Incl 13, 3 (Qty 1)

1шт.

13

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 12

1шт.

14

KLJ14110

SEAL PROTECTION

70mm

1шт.

15

150071A1

MOUNTING CLIP

380mm

1шт.
