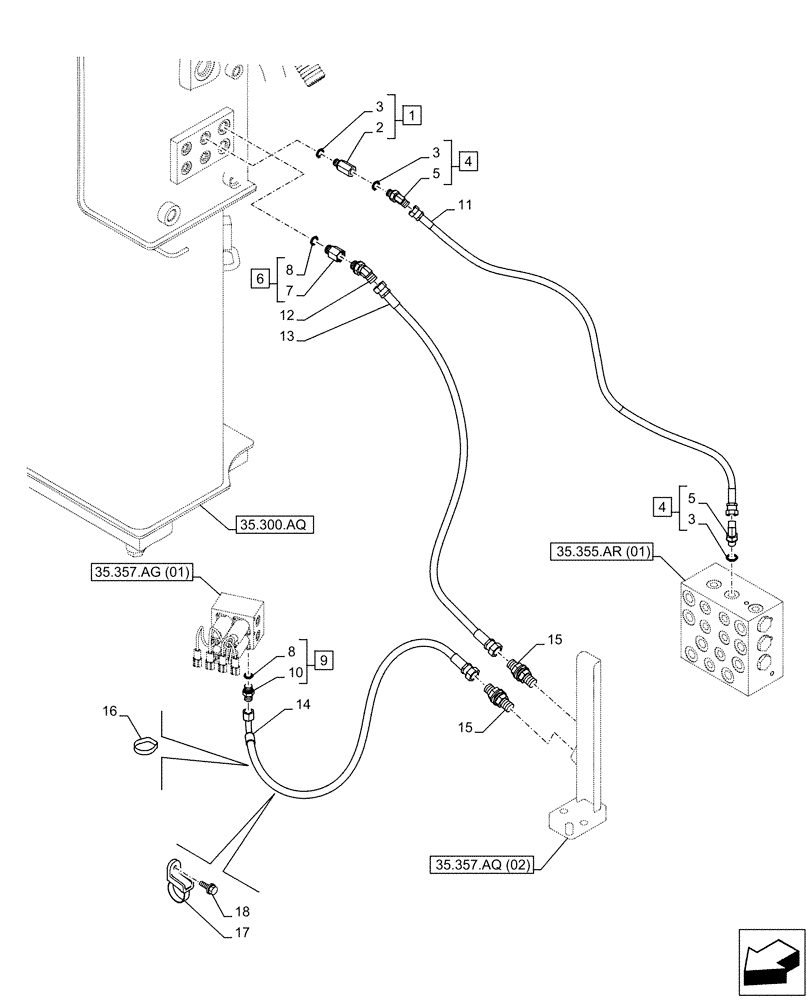

Запчасти Case CX160D LC (35.357.AQ[01]) - PILOT VALVE, DRAIN LINE (35) - HYDRAULIC SYSTEMS

1

162525A1

STUD

ASSY, G1/4" x G1/4", Incl 2, 3 (Qty 1)

1шт.

2

NSS

NOT SOLD SEPARAT

Fitting, Incl in 1

1шт.

3

150960A1

O-RING,10.8mm ID x 2.4mm Width

3шт.

4

KHJ28630

ELBOW

ASSY, G1/4" x G1/4", Incl 5, 3 (Qty 1)

2шт.

5

NSS

NOT SOLD SEPARAT

45° Fitting, Incl in 4

2шт.

6

KHJ13790

STUD

ASSY, G3/8" x G3/8", Incl 7, 8 (Qty 1)

1шт.

7

NSS

NOT SOLD SEPARAT

Fitting, Incl in 6

1шт.

8

150031A1

O-RING,10mm ID x 24mm OD

2шт.

9

152128A1

HYD CONNECTOR,3/8" NPT O-Ring x 3/8" NPT

ASSY, G3/8" x G3/8", Incl 10, 8 (Qty 1)

1шт.

10

NSS

NOT SOLD SEPARAT

Fitting, Incl in 9

1шт.

11

KHJ2065

HOSE

6mm ID x 2000mm

1шт.

12

KHJ28640

ELBOW

1шт.

13

KHJ24350

HOSE

9mm ID x 1700mm

1шт.

14

KHJ2369

HOSE,9.5 mm ID x 2250.00 mm

9mm ID x 2250mm

1шт.

15

162826A1

ADAPTER

2шт.

16

150071A1

MOUNTING CLIP

1шт.

17

KHR2581

CLAMP

2шт.

18

KHJ1215

BOLT,Spcl

2шт.
